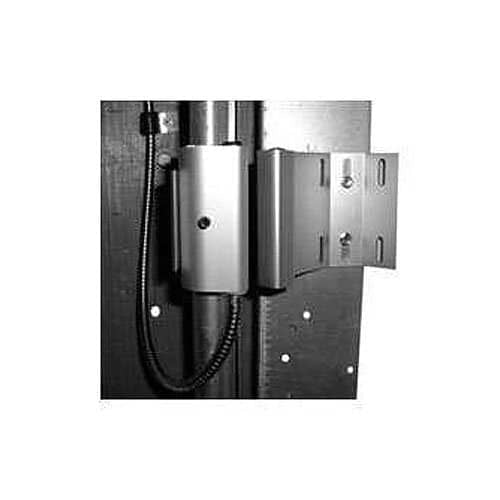

GRI 4700-AXL Industrial Track Mount Switch Set, 2.5" to 4" Track Size, up to 3" Gap, Reversible Probe Assembly, Closed Loop, Reversible Probe Assembly and 3' Armored Cable Standard,

The G.R.I. 4700-A Series Industrial Track Mount Switches are designed to eliminate false alarms from standard floor switches getting damaged by fork lifts and other equipment. The contacts are moved up onto the track and out of the way of equipment. The 4700-A Series switches are designed to be easy to install and very adjustable. They can attach to a wide range of track sizes and only require tightening one or two screws to install the contacts.

It can be installed on either side of the door and the cable exit can be reversed to simplify installation. An adjustable magnet bracket extends the reach on particularly difficult installations and self drilling screws shorten installations times. Also with a gap of up to 3 inches, doors that wear and get misaligned are not a problem.

Main Features

• Reversible probe assembly
• Left or right installation
• Reversible cable exit
• 3 ft. armored cable standard
• Multi position adjustable magnet bracket
• Closed loop or SPDT
• Hinge design for tighter clamping to track
• Up to 3” gap
• Fits channels from 1.75” up to 4”
• Self drilling screws included for easy installation
• Contacts are on the channel and not where they can get
• damaged on the floor
• No special tools required for installation
