Gentex

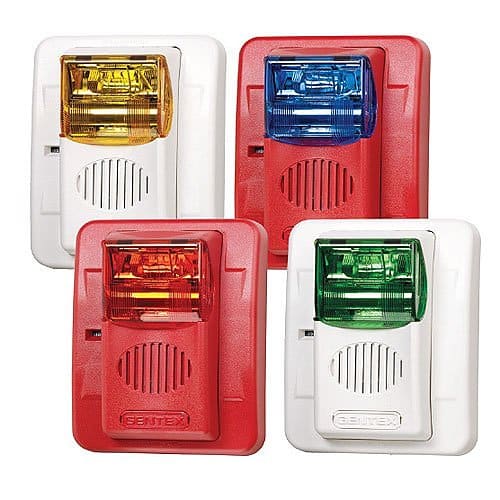

Gentex GECR24PWW Colored Lens Series Horn/Strobe, Red Lens, Selectable Candela Strobe, Wall Mount, No Lettering, White Faceplate

Gentex GECR24PWW Colored Lens Series Horn/Strobe, Red Lens, Selectable Candela Strobe, Wall Mount, No Lettering, White Faceplate

$57.53
$57.53
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

View full details
The GEC3 horn/strobe offers a continuous or synch able temporal 3 in 2400Hz, mechanical and chime as well as a whoop tone. The Commander3 Colored Lens Series is shipped with a standard 4" mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism that secures the signal to the bracket without showing any screws. The GE3 Colored Lens Series also features the patented Checkmate® instant voltage verification feature which allows the installer to check the voltage drop draw and match it against the blueprint.
The Commander3 Colored Lens Series are ANSI/UL1638, ANSI/UL464, CAN/ULC S525 and/or CAN/ULC S526 listed. The Series is also compliant with the rated candela per the polar dispersion requirements of ANSI/UL 1971. Therefore, the ANSI/UL 1971 polar plot is equal to the candela listed on the product, no derating was required. The GE3 Colored Lens Series is warranted for three years from date of purchase.

Main Features

  • Nominal voltage 24V DC
  • Tamperproof field selectable candela options of 15, 30, 60, 75, and 110
  • Super-Slide Bracket - Ease of Supervision Testing
  • Checkmate- Instant Voltage Verification
  • Synchronize strobe and/or horn with Gentex AVSM Control Module
  • Prewire entire system, install mounting bracket, then install signals
  • Input terminals accept 12 to 18AWG
  • Switch selection for high or low dBA
  • Switch for chime, whoop, mechanical and 2400Hz tone
  • Switch for continuous or temporal 3 (not available on whoop tone)
  • also available with Red faceplate
