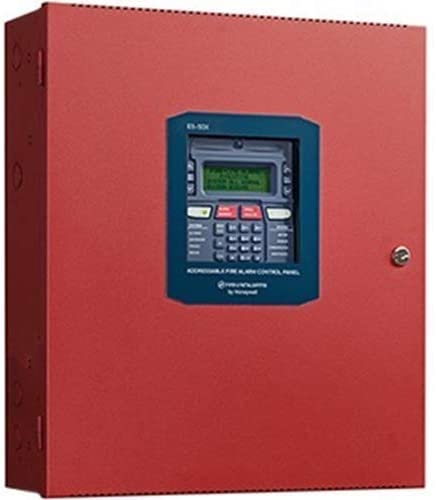

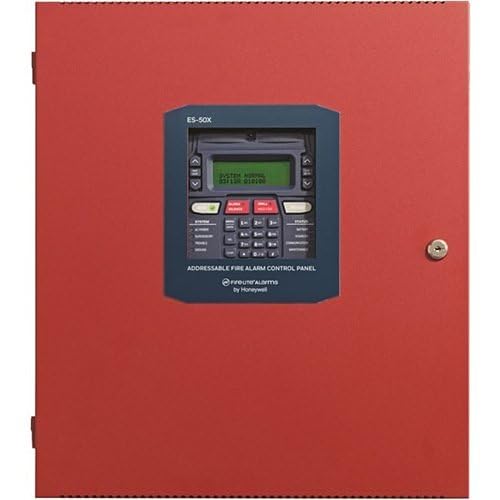

The ES-50X is a 50 point addressable fire alarm control panel (FACP) from Fire•Lite Alarms and is a replacement for the MS-9050UD/LS. This control panel has a communicator already installed. Its communicator can handle up to 50 addressable devices in any combination of detectors or modules. Full of great features, the ES-50X programs just like Fire•Lite’s other
addressable panels. This panel can also handle applications once only covered by conventional panels.
The pre-installed communicator is dual technology. Named the IPOTS-COM it uses PTOS and IP technology. The POTS sends system standing (alarms, troubles, AC loss, etc.) to a Central Station via the public switched telephone network. The IP communicator’s internet monitoring capability sends alarm signals over the Internet. Sending the signals over the internet is a great cost saving feature. Using the CELL-MOD or CELL-CAB-FL enables optional cellular reporting.
With FS-Tools Upload/Download utility this panel supports local and remote programming. Upload or download programming databases through a USB port (and USB cable) on the panel or through an ethernet connection using the dual technology communicator. The entire program, history file, walk-test data, current status and system voltages can be uploaded or downloaded with a USB flash drive.
A Quick install chassis and metal cabinet housing hold the power supply and all electronics. Available accessories include local and remote upload/download software, remote annunciators, and reverse polarity/city box transmitter (4XTMF).
50 Point Addressable FACP Features
- Listed to UL Standard 864, 10th edition
- Pre-installed IPOTS-COM Ethernet IP and POTS (Plain Old Telephone Service) Central Station Communicator
- Optional CELL-MOD or CELL-CAB-FL GSM Central Station Communicator over AlarmNet®
- Compatible with SWIFT® wireless devices
- Auto-programming (learn mode) reduces installation time. Reports two devices set to the same address
- Two independently programmable, built-in Style Z (Class A) or Style Y (Class B) NAC circuits
- Selectable strobe synchronization for System Sensor, Wheelock, and Gentex devices
- Notification Appliance Circuit End of Line resistor matching
- Four programmable function keys for ease of maintenance
- Two programmable relays and one fixed trouble relay
- Built-in Programmer
- Integral 80-character LCD display with backlighting
- Real-time clock/calendar with automatic daylight savings control
- History file with 1,000 event capacity
- Addressable sounder base
- Multi-criteria detector (smoke, heat, CO) with programmable response
- Control module delay timer
- Automatic detector sensitivity testing (NFPA 72 compliant)
- Automatic device type-code verification
- Point trouble identification
- Waterflow selection per module point
- Alarm verification selection per detector point
- hardware kit: 50133289-001
