Fire-lite Alarms By Honeywell

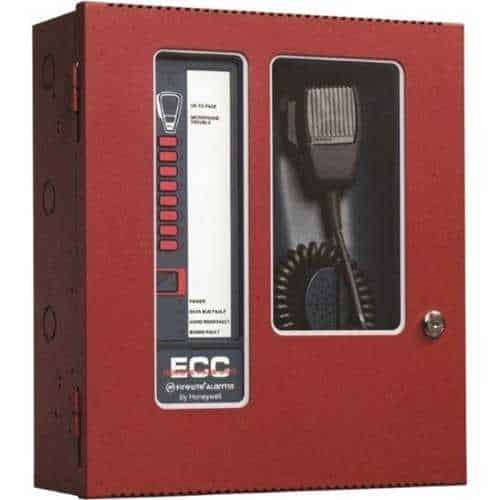

Fire-Lite ECC-RPU Remote Page Unit

Fire-Lite ECC-RPU Remote Page Unit

Regular price $1,779.47
Regular price Sale price $1,779.47
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Quantity
View full details
The ECC-RPU is an optional Remote Page Unit that is compatible with the ECC-50/100(E) Emergency Command Center for fire protection applications. It is part of the family of external remote consoles that allows for extending the ECC-50/100(E) display and control to remote locations within a building. It is housed in a cabinet with a keyed or an optional thumb lock to limit access to qualified personnel. The ECC-RPU includes a built-in microphone and 8 selection buttons that can be pushed to activate the system remotely. ALL CALL paging can be broadcast over the speaker circuits by depressing the microphone's push-to talk button.
As an added benefit, the 9th button on the RPU can be used to activate an MMF-300 monitor module that may be installed inside the ECC-RPU cabinet to be used for applications such as HVAC shutdown. The ECC-RPU requires an external data bus connection, an external audio riser connection, and an external operator interface power connection (24 Volts DC) from the ECC-50/100 main console.

Main Features

  • Provides messaging status and control of the ECC-50/ 100(E) primary operator console.
  • Modular design for maximum system flexibility and easy expansion.
  • Supports both Class A (Style Z) and Class B (Style Y) wiring.
  • A maximum of eight ECC-RPU's can be connected to an ECC-50/100(E) primary operating console
  • Built-in microphone with push-to-talk feature that can be used for ALL CALL paging.
  • Up to fourteen programmable messaging functions that can be activated over speaker zones remotely.
  • Sturdy cabinet design with a keyed lock to prevent unauthorized access. Optional thumb lock available.
  • Simple and straightforward user interface.
  • Additional 9th button can be used to activate an optional MMF-300 monitor module installed inside the cabinet for applications such as HVAC shutdown.
