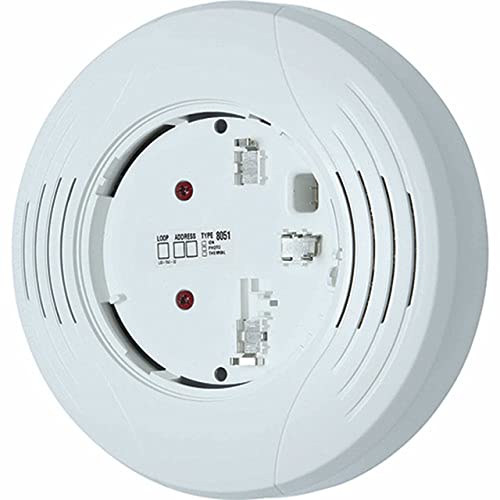

Fire-Lite B200S-LF-IV Intelligent Addressable Sounder Base, Low-Frequency, Ivory
Fire-Lite B200S-LF-IV Intelligent Addressable Sounder Base, Low-Frequency, Ivory
Regular price
$155.21
Regular price
Sale price
$155.21
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Fire-Lite B200S-LF-IV and B200S-LF-WH Low Frequency Intelligent, Programmable Sounder Base,
The B200S-LF-WH and B200S-LF-IV sounder bases are used with addressable detector heads. Refer to the appropriate manual for more information on sensors. The B200S-LF-WH/B200S-LF-IV low frequency sounder base generates a low frequency tone around 520 Hz. The B200S-LF-WH/B200S-LF-IV offers maximum flexibility in configuration and operation to meet or exceed the requirements of UL268 and UL464 for Continuous, Temporal 3 and March time patterns. The temporal 4 pattern meets all requirements of UL268 and UL2075, as well as, private mode setting of UL 464.
Main Features
- Base Diameter: 6.875" (17.46 cm)
- Base Height (less sensor): 2.0" (5.08 cm)
- External Supply Voltage: 16 to 33 VDC (VFWR)
- Standby Current: 550 µA maximum VDC
- SLC Operating Voltage: 15 to 32 VDC
- SLC Standby Current: 300 µA maximum (base only, refer to applicable sensor specification)
- The detector should be cleaned at least once a year.
- Available in Ivory and White
