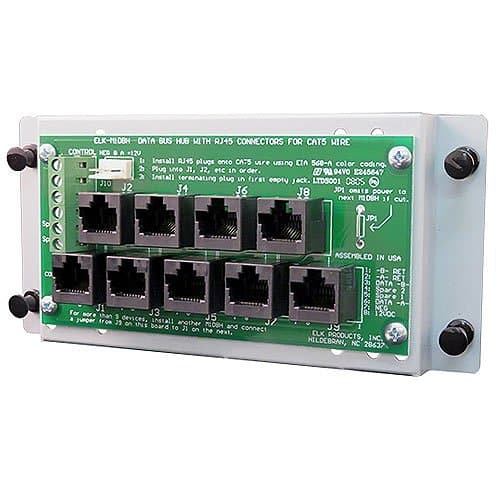

For easy connection of expanders & keypads. The M1DBH accepts up to 9, RJ45 equipped CAT5 or CAT6 cables, and series connects the data A & B lines so the data bus may be terminated properly. Two or more units may be interconnected if more than 9 data lines are required.
Main Features
- Designed For Multiple Home Run Cables
- Internally Connects Data A & B Lines From Previous Device In to Next Device Out
- Provides up to Nine (9) Data Bus Connections
- Multiple Hubs May be Connected for Expansion
- EOL Bus Termination Can Be Done On-Board, RJ45 Terminating Resistor Plug Included
- Mounting Plate for Structured Wire Boxes
- Input Connections: Elevator Screw Terminals
- Output Connections: RJ 45 8-Pin Jacks
- Mounting Plate Dimensions: 6.5″ x 3″ x .5″
- Circuit Board Dimensions: 5″ x 2.5″
