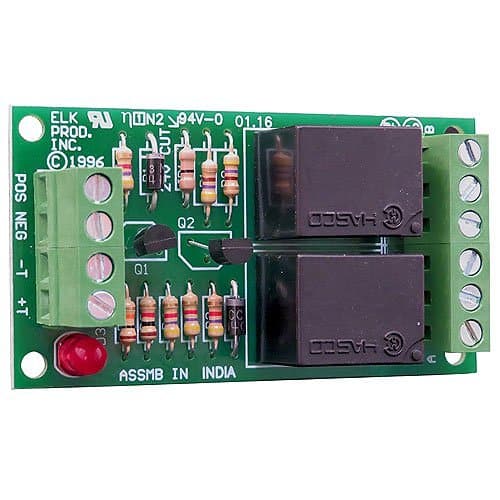

• Electronic circuit board with components on a white background
1 1

ELK

ELK-924 Sensitive Relay DPDT 12 or 24 VDC

ELK-924 Sensitive Relay DPDT 12 or 24 VDC

MPN: ELK-924

$26.00
$26.00
Sale Special Order
Shipping calculated at checkout.

141 in stock
View full details
The ELK-924 Sensitive Relay module features DPDT (Form “C”) dry contacts for general purpose switching of devices or high current loads. It operates on 12 or 24 volts DC and can be triggered with a negative or positive input at an incredible low current of only 1 milliamp. Also available in a 4 pack (ELK-9244) which is packaged as 4 relay modules grouped on a pre-scored break-off circuit board.

Specifications

  • Operating Voltage: 12 or 24 Volts DC, jumper selectable
  • Current Draw: 60mA (both relays on)
  • Relay Contacts: Form “C” , 7A @ 30VDC, 10 A @ 125VAC
  • Size: 1.5″ X 2.75″
  • Trigger Voltage: 5 – 24VDC
  • Trigger Current: 1.2mA @12 VDC

Main Features

  • Super Low 1.2 mA Trigger Current
  • Positive ( ) Or Negative (-) Trigger Input
  • Double Form “C” Contacts DPDT
  • Heavy Duty Contact Rating
  • On Board LED Status Indicator
  • Includes Double Sided Mounting Tape
  • Mounts in Standard 2.75″ Snap Track
  • Packaged in Reusable Poly Storage Box
  • Lifetime Limited Warranty
