ELK-912B6 (Six Modules) Relay Module SPDT 12 or 24 VDC

ELK-912B6 (Six Modules) Relay Module SPDT 12 or 24 VDC

$63.94
$63.94
Sale Special Order
Shipping calculated at checkout.

View full details

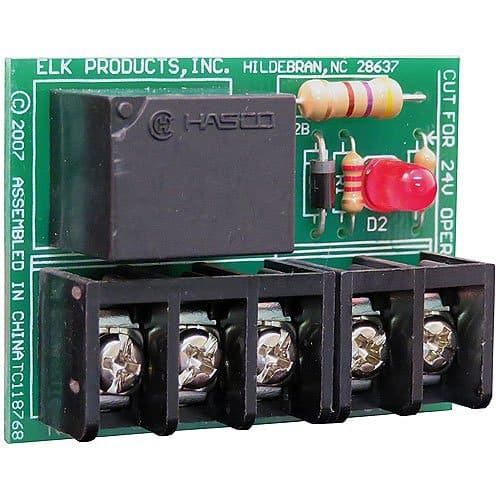

The ELK-912B is a heavy duty relay module featuring 12 or 24V DC selectable operation, SPDT Form “C” contacts, low current draw, voltage input LED, and high quality large cross-head terminals. It is ideal for general purpose switching of devices or high current loads. Also available in a 6 pack (ELK-912B6) which is packaged as multiple relay modules grouped on a pre-scored break-off circuit board.

Main Features

  • High Quality Large Cross Head Screw Terminals
  • Positive Or Negative Activation
  • Low Current Draw
  • Voltage Input and Status LED
  • Size: 2" X 1.5" each
  • Relay Contacts: 7A @ 28VDC, or 10A @ 125 VAC
  • Operating Voltage: 12 or 24 Volts DC
  • Current draw: 35mA, triggered (relay on)
  • Includes Double Sided Foam Mounting Tape
  • Packaged in Reusable Poly Storage Box
