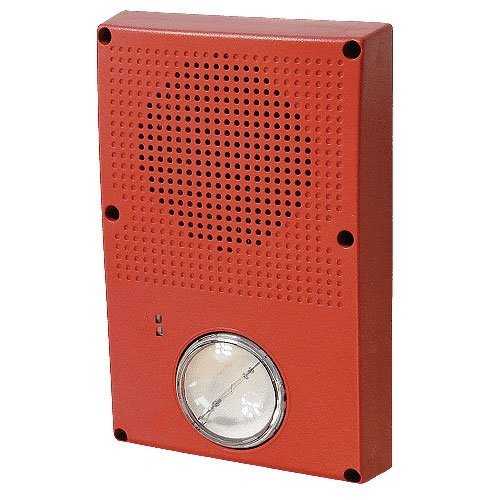

Edwards Signaling WG4RN-SVMHC Genesis WG4 Series Speaker Strobe, No Marking, High Candela, Clear Lens, Red

Genesis WG4 Series speakers and speaker-strobe appliances are among the most versatile emergency appliances of their kind. Rated for indoor or outdoor use, they are suitable for a wide range of wet and harsh environments with a listed operating temperature range of as low as -31°F to as high as 151°F (-35°C to 66°C). Field-configurable light and sound output settings add to their onsite flexibility, while optional FIRE or ALERT markings and colored lenses make them ideal for either emergency communications/ mass notification (ECS/MNS) or fire alarm applications. These appliances are suitable for indoor and outdoor applications, and are ideal for challenging conditions such as parking garages and process areas.

They are listed for mounting on the ceiling or the wall, and thanks to an ingenious full backplane sealing gasket, can be installed to recessed (in-the-pour/block) electrical boxes. WG4 signals also mount to suitable surface boxes served by raceways. Optional color-matched trim skirts provide a clean, finished appearance. All appliance wiring is accomplished room-side for easy installation. WG4 Series appliances feature highly intelligible and efficient mylar-cone loudspeakers. These are dual-voltage (25.2V or 70.7V), and have field-selectable output taps ranging from 80.8 dBA to 90.0 dBA. The multi-candela strobes are available with clear or amber lenses and in two output categories - standard and high-output. They are precision-timed to meet UL 1971 synchronization standards, and field-configurable for one of four candela intensities. Wattage and candela settings are viewable even after installation through an innovative sealed viewport display.

Main Features
