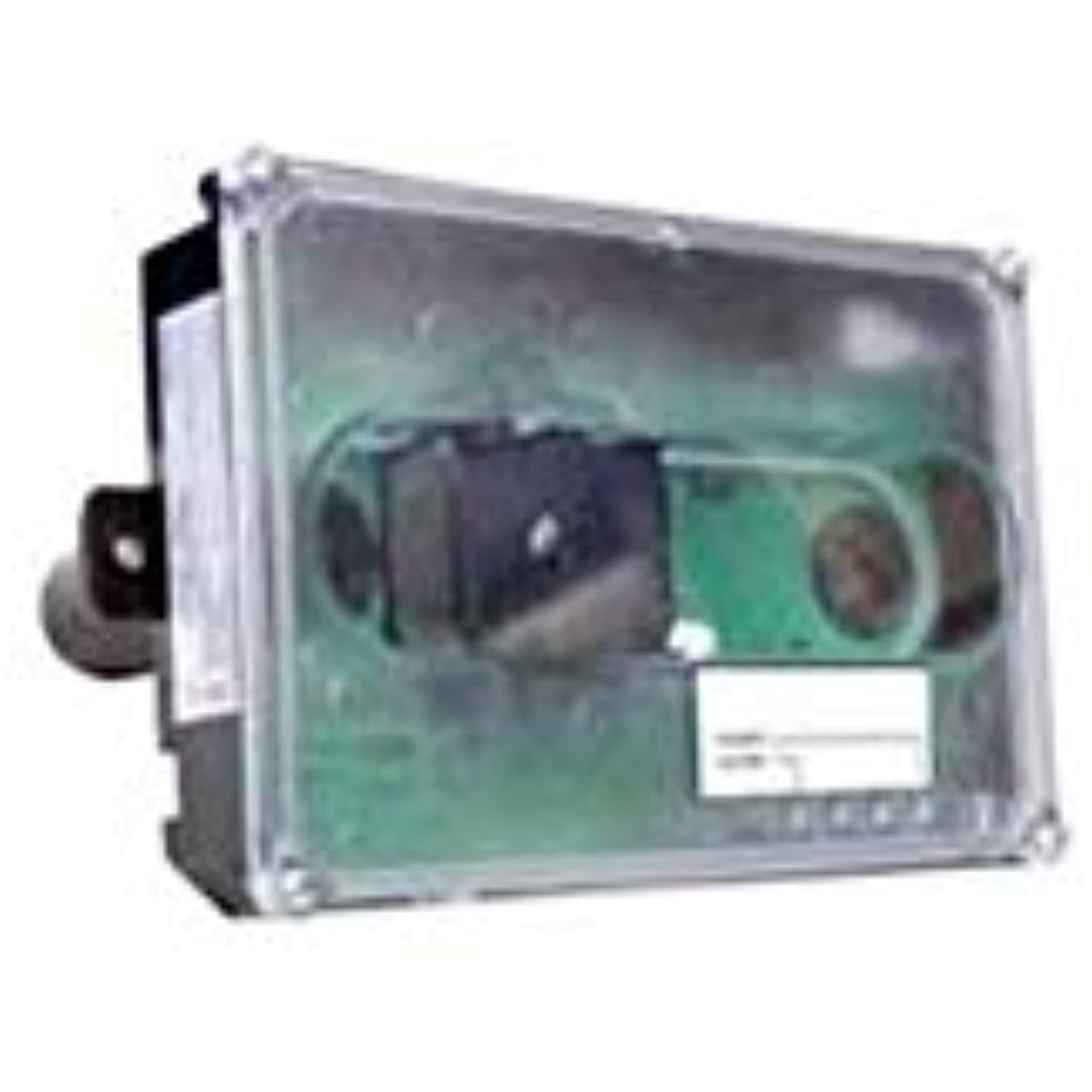

Edwards Signaling FX-PDD Intelligent Addressable Duct Smoke Detector

• Less than 2" deep for easy installation and applications where space is tight
• 32 to 120 °F (0 to 50 °C) operating range with 100 ft/min. to 4,000 ft/min air velocity rating assures reliability under harsh environmental conditions
• Status LEDs remain visible through clear assembly cover
• Cover monitor switch for added security
• Standard sampling tube spacing for easy drop-in migration from other detectors
• Sampling tube can be installed with or without the cover in place and can be rotated in 45-degree increments to ensure proper alignment with duct airflow
• 15.2 to 19.95 Vdc operation
• Magnet-activated test switch
• One Form C auxiliary alarm relay for controlling ancillary equipment (e.g., HVAC controls)
• No special tools required for easy access to field connections
• Environmental compensation with differential sensing for reliable, stable, and drift-free sensitivity
• Wide 0.79% to 2.46% obscuration/ft. smoke sensitivity
• Identification of dirty or defective detectors
