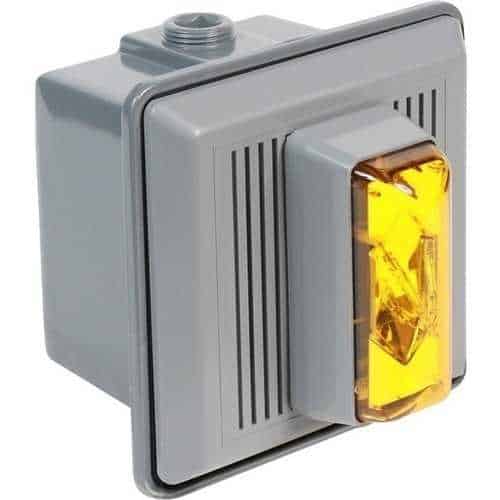

Edwards Signaling Amber Electronic Xenon Strobe with Horn, 24VAC/DC, Flashing, 100dB at 1m, -35 to 66 Max Operating Temp, Surface Mount

Edwards Signaling Amber Electronic Xenon Strobe with Horn, 24VAC/DC, Flashing, 100dB at 1m, -35 to 66 Max Operating Temp, Surface Mount

Regular price $441.40
Regular price Sale price $441.40
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Quantity
View full details
Edwards 860 Series xenon beacons with horns are bright, low current, high decibel, combination signals designed for use where a distinctive visual or audible signal is required." The housing is made of gray, engineered thermoplastic." The strobe and horn can be operated independently. The 867STR (indoor) and 868STR (outdoor) Series can be surface mounted on the supplied surface box." The 869STR and 869DSTR Series beacons can be flush mounted." They are designed to mount in a standard 4" (102mm) square electrical box with extension ring (total min. depth of 3" (75mm) not supplied.) The 869DSTR Series is Diode Polarized for use in electrically supervised circuits.

Main Features

  • Xenon strobe light source with horn
  • Gray, engineered thermoplastic housing
  • Versions suitable for indoor and outdoor applications
  • Flash rate 60 fpm
  • 100dB at 1 meter/90dB at 10ft
  • Low current draw
  • Terminals for easy wiring
  • Operating indoor temperature range: 85% relative humidity at 86°F (30°C), 32°F to 120°F (0 to 49°C) variable ambient temperature
  • Operating outdoor temperature range: 95% relative humidity at 86°F (30°C), -31°F to 150°F (-35°C to 66°C) variable ambient temperature
