Edwards Signaling

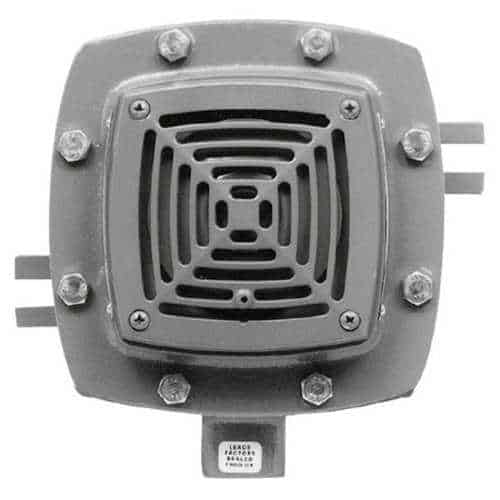

Edwards Signaling 870EX Series Vibrating Horn, bracket mount, explosionproof, NEMA 4X rated, 3.8 VA per lamp,

Edwards Signaling 870EX Series Vibrating Horn, bracket mount, explosionproof, NEMA 4X rated, 3.8 VA per lamp,

Regular price $1,427.66
Regular price Sale price $1,427.66
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Quantity
View full details

Kidde 879DEX-G1 879DEX-G1 870EX Series Horn, 24VDC operating voltage, 107dB@1m, diode polarized, gray

The Edwards 878DEX, 879DEX, 888D and 889D series are diode polarized, heavy-duty, high decibel, vibrating horn signals. They are intended for use in hazardous locations requiring electrical supervision of signaling circuit field wiring. The 878DEX and 879DEX are for non-fire alarm applications and also have a NEMA type 4X rating and may be used outdoors (recommended above temperatures of +25F). Two mounting brackets are provided on either side of the unit for wall mounting. The housing is tapped on one side for 3/4" (19mm) conduit to allow for field wiring installation. For use in dusty, hazardous atmospheres where a distinctive, urgent signal is required. Typical applications include use in mines, petroleum plants, gas plants, grain elevators, flour mills, paper mills, textile plants and tankers.

Features

  • Diode polarized
  • Corrosion resistant heat flowed epoxy finish
  • Low current drain
  • Available in grey or red
