Edwards Signaling
Edwards Signaling 870EX Series Vibrating Horn, bracket mount,
Edwards Signaling 870EX Series Vibrating Horn, bracket mount,
Regular price
$1,450.39
Regular price
Sale price
$1,450.39
Shipping calculated at checkout.
Special order — estimated 2–6 weeks lead time.
Special Order
Quantity
Couldn't load pickup availability

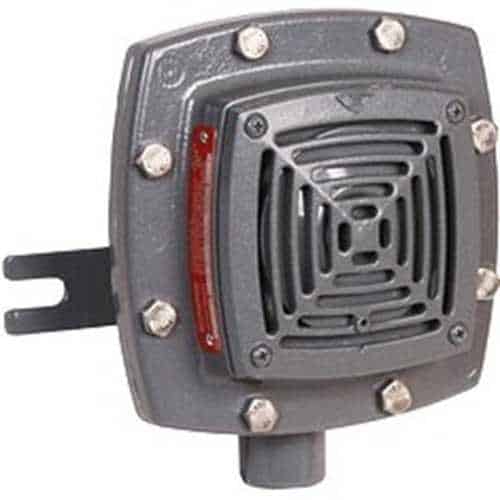

The Edwards 878EX AC & 879EX DC Series are heavy-duty, high decibel, vibrating horn signals designed for use in hazardous locations. Two mounting brackets are provided on either side of the unit for wall mounting. The housing is tapped on one side for 3/4" (19mm) conduit to allow for field wiring installation. For use in dusty, hazardous atmospheres where a distinctive, urgent signal is required for timing, scheduling, paging and general alarm applications. Typical applications include use in mines, petroleum plants, gas plants, grain elevators, flour mills, paper mills, textile plants and tankers.
Main Features
- Corrosion resistant heat flowed epoxy finish
- Low current drain
- Diode polarized
- Operating voltage range -20% to +10% of nominal voltage
- Power connection wires embedded in sealing compound
- NEMA Type 4X rated
- UL listed for Class I, Div. 1 and 2, Groups B, C and D; Class II, Div. 1 and 2, Groups E, F and G; and Class III locations
