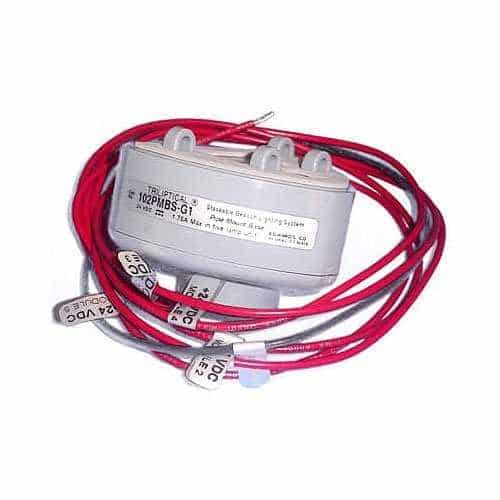

Edwards Signaling 102 Series Mini Mounting Base Unit for StackLight, for use with 3/4" (19mm) Conduit Mount

Edwards 102 Series StackLight is a unique audible-visual signaling device that may contain up to five light modules and a pulsating horn in a single, integrated stack. Two optional sounder modules are also available. The StackLight diffusion optic lens allows viewing from close up while still projecting the light through use of a built-in projection ring. The lens modules are available with LED, Incandescent, Halogen or Strobe light sources. Options for steady-on or flashing are available. The 102 Series offers a shorter base for panel or conduit mounting as well as a taller base, designed for use with a sounder module.

Features

• LED, Incandescent, Halogen and Strobe light source
• Steady-on or flashing
• Six lens colors available
• Two optional IP54 sounders available:
• Single tone module
• Multi-tone module, eight available tones
• Sounder modules provide 89dB @ 1 meter/79dB @ 10 ft.
• Base and light modules are IP65 rated
• Suitable for indoor and outdoor applications
• Option for panel or conduit mounting
• NEMA Type 3R and 4X enclosure
• Optional mounting not included
