Eaton / Wheelock

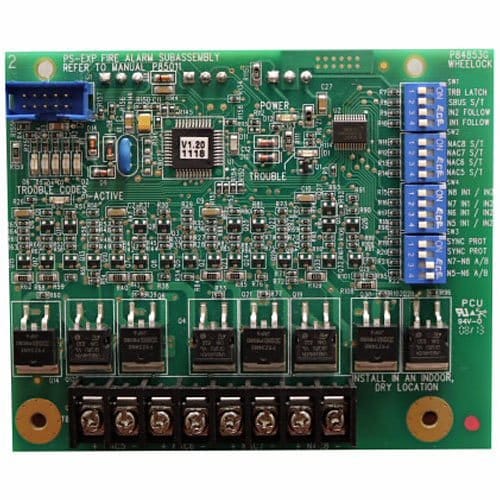

Eaton PS-EXP PS Power Supply, class or class Expansion Module, Green

Eaton PS-EXP PS Power Supply, class or class Expansion Module, Green

MPN: PS-EXP

$169.38
$169.38
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Out of stock
View full details
The Wheelock POWERPATH Power Supply (PS-8-LP) is a supervised remote power supply/battery charger in a low profile cabinet that is used for supervision and expanded power driving capability of fire alarm Notification Appliance Circuits (NACs). The PS-8-LP is filtered and regulated and provides 8 amps of power distributed across 4 outputs. The PS-8-LP features 2 Class B or 2 Class A inputs, input to output follow mode and audible silence capability, dip switch programming and LED latching option, 2 Relays - AC fail and common trouble , and programmable AC loss relay delay. It also provides POWERPATH to POWERPATH panel synchronization and 2.5 amp auxiliary power w/ reset capability
  • The POWERPATH units provide filtered and regulated 24VDC, up to four (4) Class “B”, two (2) Class “A”, or two (2) Class “B” and one (1) Class “A” Notification Appliance Circuits.
  • CATALOG NUMBER: PS-EXP PRODUCT LENGTH/DEPTH: 1 in PRODUCT HEIGHT: 3.9 in PRODUCT WIDTH: 4.7 in
  • PRODUCT WEIGHT: .194 lb TYPE: 4 class B or 2 class A expansion module OUTPUT CIRCUITS: 24 VDC @ up to 3 amps per circuit HOUSING COLOR: Green
