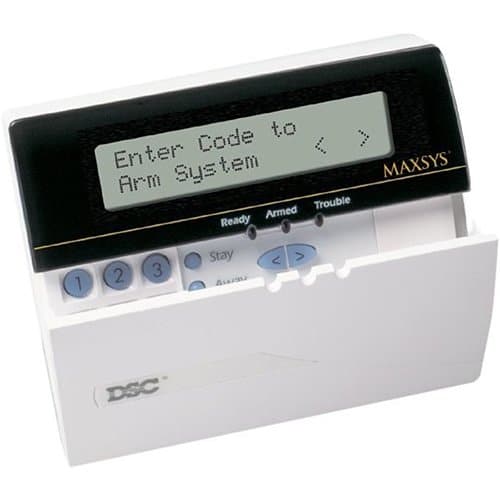

DSC LCD-4501 MAXSYS Programmable Message LCD Keypad
DSC LCD-4501 MAXSYS Programmable Message LCD Keypad
Regular price
$259.10
Regular price
Sale price
$259.10
Shipping calculated at checkout.
Special order — estimated 2–6 weeks lead time.
Special Order
Quantity
Couldn't load pickup availability
MAXSYS system keypads provide a plain language interface using a large 32 character LCD display with adjustable brightness and contrast.
All system programming and user operations can be performed using the LCD keypads. Keypads are connected to PC4010/4020 control panels via a 4-wire system communications bus (Combus) which provides power for the keypads and acts as the system communication channel.
Keypads are enrolled on to the system at the time of installation, and are supervised for low voltage and presence by the main panel.
Main Features
- Connect up to 16 keypads
- Large, backlit, 2-line, 32-character display
- Plain-language display of zone status, system status, trouble conditions, event buffer, system instructions, date and time
- Ready, Armed and Trouble LEDs
- 5 programmable function keys
- 4 keypad-activated alarms: Panic, Auxiliary, Fire and Duress
- Backlight boost
