DSC HSM3105MX Interface for MX Loop Max 124 MX Devices
DSC HSM3105MX Interface for MX Loop Max 124 MX Devices
MPN: HSM3105MX
Regular price
$201.36
Regular price
Sale price
$201.36
Shipping calculated at checkout.
97 in stock
Quantity
Couldn't load pickup availability

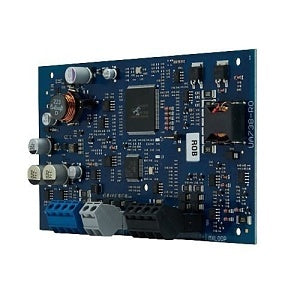

The HSM3105MX from DSC is an expansion module intended to provide MX addressable device expansion to IQ Pro and IQ Pro P Panel. The module connects to the panel using the Corbus interface and provides connectivity for two 2 wire MX addressable buses that devices are connected to. The two MX buses which are left and right can be configured to operate as a single loop or as separate left and right spurs.
Main Features
- Support for Both Two Wire and Four Wire Configurations
- It can be installed in the IQ Pro Enclosure or Separately
- Load Configuration Using a Linked Spreadsheet
- High Power and Lower Power Modes
- Temperature Range: -10°C to +55°C
- Support for Line T-Tapping/Spurs
- Installation with IQ Installer
- Compatible with: IQ Pro, MX945 Pull Station Interface, MX922Glassbreak Sensor, MX920 Line Isolator Module, MX862 PIR Sensor, MX974 Addressable MX PIR Sensor, MX975I Addressable MX Universal Input Module
- RoHS Compliant
