DoorKing

DoorKing 8040-080 Multi-Purpose Receiver, Form Relay, 12-24V AC orV DC, Can be used with MicroClik or MicroPlus Transmitters

DoorKing 8040-080 Multi-Purpose Receiver, Form Relay, 12-24V AC orV DC, Can be used with MicroClik or MicroPlus Transmitters

$202.10
$202.10
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

View full details

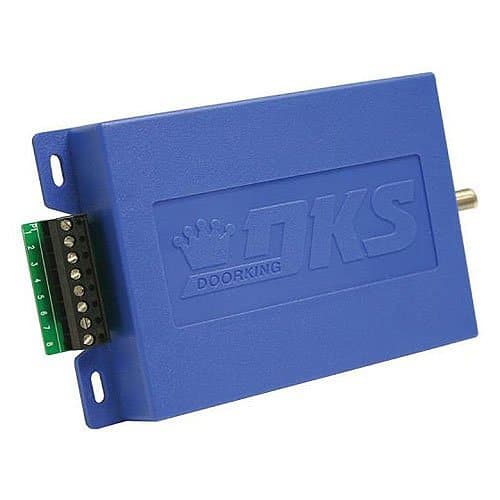

The model 8040 receiver is a versatile RF receiver that can output received transmitter codes in 26, 30 or 31-bit wiegand format allowing it to be used with most access controllers, or it can be used as a stand-alone receiver using its built-in Form C (NO, NC, C) dry contact relay. A "Master" transmitter can be setup and used to quickly put the RF receiver into "Learn Mode" to program additional transmitter codes.
 The 8040-080 receiver operates at 318 MHz and can be used with both MicroPlus® and MicroClik ®transmitters set to this frequency. The 8040-081 receiver operates at 418 MHz and can ONLY be used with MicroClik® transmitters set to this frequency.

Main Features

  • Works with MicroClik and MicroPlus
  • The receiver can also be programmed for 26, 30 or 31-bit weigand output, making it compatible with most access control systems
  • Lower power draw operating mode makes the 8040 ideal for solar power applications
  • The 8040 allows the installer to program a Master Transmitter
