Ditek

Ditek DTK-FPK1 Fire Alarm Control Panel Protection Kit

Ditek DTK-FPK1 Fire Alarm Control Panel Protection Kit

MPN: DTK-FPK1

$146.31
$146.31
Sale Special Order
Shipping calculated at checkout.

Low stock: 17 left
View full details

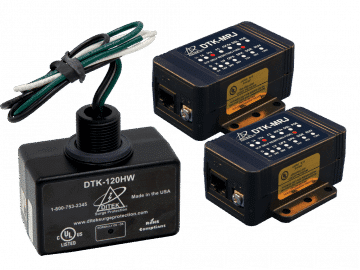

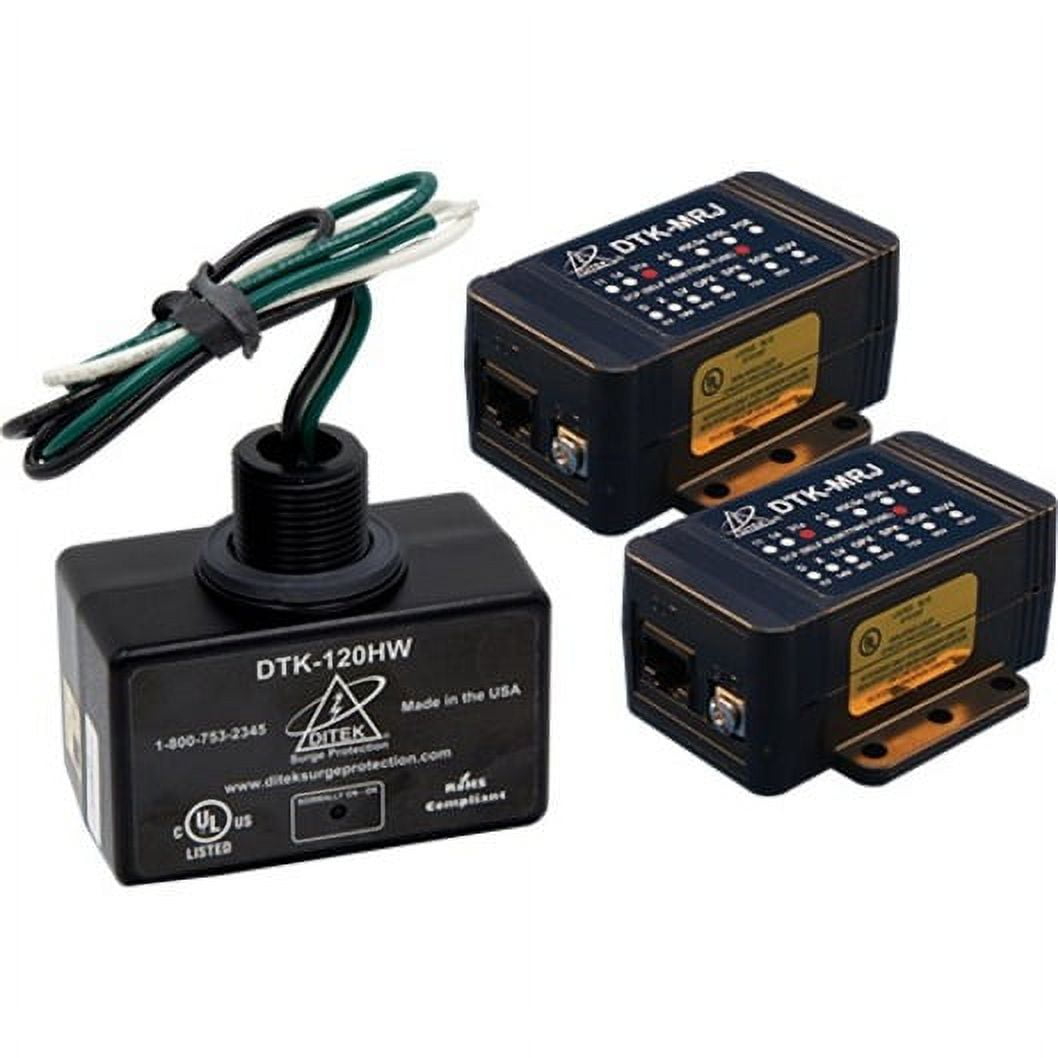

The DTK-FPK1 fire alarm surge protection kit includes one DTK-120HW for AC power protection, and two DTK-MRJ31XSCPWP's to protect dialer circuits Fire Protection Kits from DITEK are designed for commercial alarm professionals specializing in fire detection systems. Each customized kit provides AC power and dialer circuit protection.

Fire Alarm Surge Protection Kit Main Features

  • 120V AC power protection with 19,500A peak surge current rating
  • Diagnostic LED indicates ground presence, system power and SPD function
  • Protects dialer circuit against over-voltage and over-current events
The DTK-120HW provides surge protection for 120VAC equipment panels and dedicated branch circuits. The compact, parallel-mount design allows for installation in a variety of locations.
  • Approved for 20A circuit breakers
  • SCCR rating of 10kA complies with NEC Article 285.6
  • NEMA 4X weatherproof enclosure allows for use in harsh environments
  • UL1449 Listed Type 1 SPD
  • Diagnostic LED
The DTK-MRJ31XSCPWP is a modular surge protection device designed to protect fire and security system dialer circuits. This point of use surge protector can be easily installed in series with the circuit.
  • Single pair RJ31X dialer circuit protection with patch cord
  • Universal modular jack with external grounding screw
  • Sneak Current Protection - SCP: 150mA self-resetting fuse protects against repeated surges
