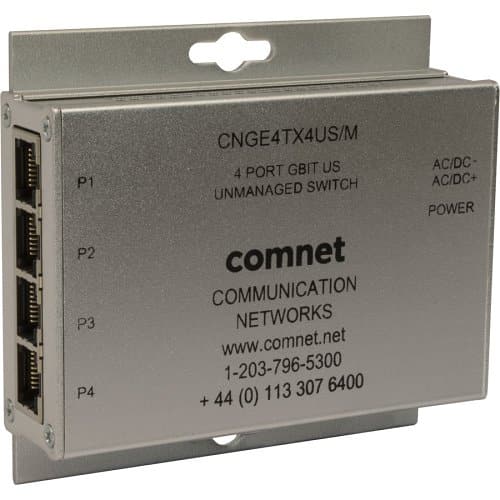

ComNet CNGE4TX4US/M 4-Port Ethernet Unmanaged Switch, 10/100/1000Mbps

The ComNet CNGE4TX4US/M Ethernet 4 port unmanaged switches are designed to transmit and receive 10/100/1000 Mbps Ethernet data. The CNGE4TX4US/M are environmentally hardened to operate in demanding environments. LED indicators are provided for confirming equipment operating status. Plug-and-play design ensures ease of installation requiring no user adjustments. Packaged in the exclusive rugged ComNet medium housing, these units may be either wall mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT4 adaptor.

Features

• Electrical ports support 10/100/1000 Mbps Ethernet IEEE802.3 protocol
• Environmentally hardened for deployment in difficult unconditioned out-of-plant and roadside installations
• All ports support 1000 Mbps full duplex Ethernet data
• Status indicating LEDs provide rapid indication of critical operating parameters.
• IEEE 802.3 compliant
• Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
• Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
• Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
