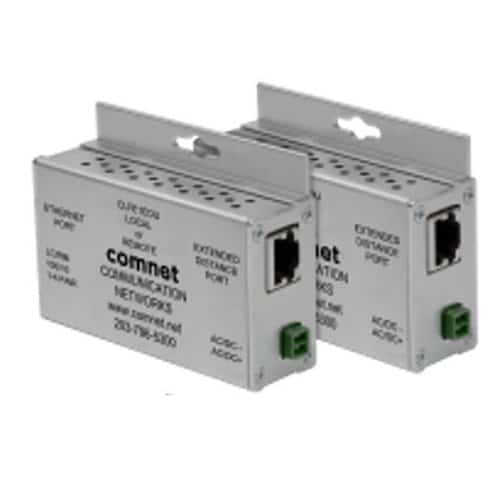

• Two metallic devices with Ethernet ports labeled 'Comnet' on a white background.
1 1

Comnet

ComNet CLKFE1EOU Ethernet-Over-Copper Extender with Pass-Through PoE

ComNet CLKFE1EOU Ethernet-Over-Copper Extender with Pass-Through PoE

MPN: CLKFE1EOU

$932.43
$932.43
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Out of stock
View full details
The ComNet CopperLine® Ethernet over copper line kit supports one channel of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units included in the kit may be powered by a PoE switch or the included power supply. These units extend a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.
Main Features
  • Full 10/100 Mbps Bandwidth
  • Supports Multicast, Unicast and Jumbo Frame
  • Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
  • User-selectable data rate for maximum bandwidth and transmission distance utilization.
  • Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
  • Designed and manufactured in the USA
  • Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
  • Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
  • Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
  • Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
