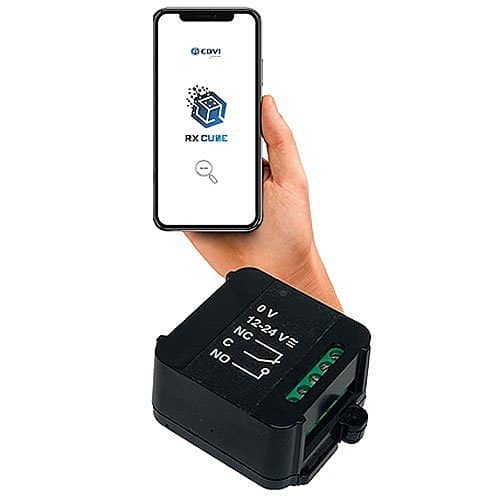

The receiver “RXCUBE” is a superheterodyne radio receiver operating at 433,92 MHz in AM/ASK demodulation. It is compatible with the full range of remote controls Erone and RADIUM that use the Keeloq® Hopping code security protocol. This receiver can be programmed only via Bluetooth using set-up and control that can be done only using the app: “RX Cube” on a Smartphone (iOS or Android). Power supply 12-24 V ac/dc auto-detect.
Main Features
- Carrier frequency : 433,92 MHz - AM/ASK
- Input sensitivity : 50 Ohm
- Power supply: 12 - 24 V ac/dc ( auto-detect)
- Max switching power: Contact NO 10 A @ (30 Vdc), Contact NC 6 A @ (30 Vdc)
- Relay number: 1
- Operating modes: Pulse / Latch / Timed
- Release time (Timed): from 1 sec. to 23h:59m:59s
- Contacts: C-NO-NC
- Memory capacity: 250 user codes
- Communication w/mobile phone : Bluetooth BLE 4.2
- Get it in a kit: CDVI CUBEKIT Bluetooth Gate Remote Transmitter Kit
