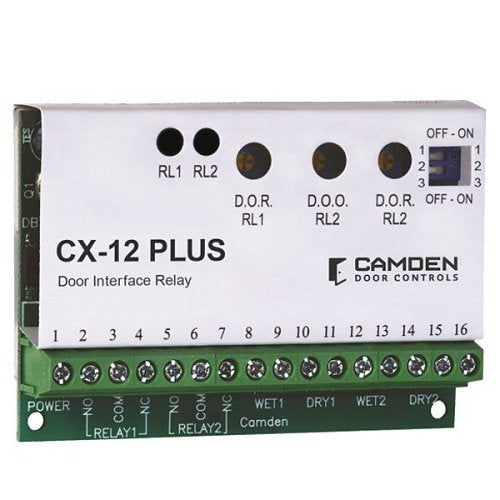

Camden CX-12PLUS 8-Mode Relay Door Interface

Camden has combined the industry leading features of our Camden CX-12PLUS 8-Mode Relay Door Interface, including easy system interconnection, and our CX-22 Dual Function Relay, providing bi-directional door sequencing and basic restroom control. CX-12 Plus Door Interface Relay has 8 programming modes with (3) adjustable time delays, each up to 30 seconds. There are (2) Dry and (2) Wet inputs, with (2) SPDT Form 'C' outputs.

Main Features

• Designed for easy interconnection of automatic doors with access control, time control, telephone entry and fire alarm systems
• Bi-directional sequencing of two door operators in vestibule applications
• New'PLUS' feature supports basic restroom control (locked and unlocked)
• 8 Programming modes with (3) adjustable time delays, each up to 30 seconds
• (2) Dry, (2) Wet inputs, and (2) SPDT Form 'C' outputs
• Momentary, maintained and latching (ratchet or alternative action) relay operation
• Compact design fits anywhere
