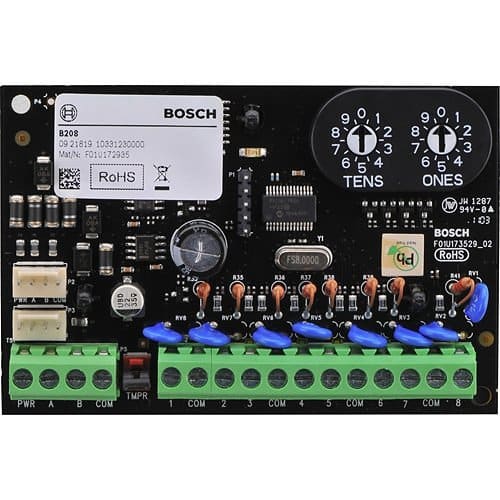

• Bosch electronic control board with various components on a white background
1 1

Radionix

Radionix B208 8-Input Expansion Module, SDI2

Radionix B208 8-Input Expansion Module, SDI2

MPN: B208

$121.15
$121.15
Sale Special Order
Shipping calculated at checkout.

802 in stock
View full details
The B208 Octo-input Module is an 8 point expansion device that connects to the control panel through the SD12 bus. This module is fully supervised and communicates back to the control panel all point status changes. The module expansion points operate the same as the points on the control panel. Industrial, commercial, and institutional facilities are typical installations for the B208 module. The B208 connects to the SD12 bus on the control panel using SD12 terminals, or using the interconnect cable. You can connect multiple B208 modules to a single control panel. The B208 address switches allow for ease of use in device addressing.

Benefits

  • The B208 uses up to eight inputs which may be Normally Open (NO), or Normally Closed (NC) with 1k Ω EOL resistor(s) for supervision.
  • The B208 Octo-input Module connects to a control panel through the SD12 bus.
  • This module is supervised and communicates back to the control panel all point status changes.
  • The module’s expansion points operate the same as the points on the control panel.
