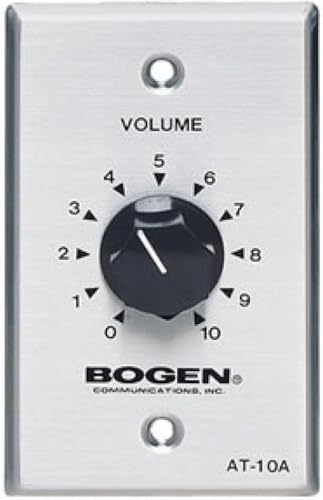

Bogen AT10A 10W Attenuator, Mounts in Standard Electrical Box

The AT10A attenuator allows the output level of a network of 25V or 70V speakers to be controlled from a wall-mounted volume control, without affecting overall amplifier volume settings. Volume reduction takes place in 3 dB increments except for the two lowest settings, which provide 6 dB reduction increments. The attenuator provides a choice of 10 stops and an off position, and is capable of controlling up to 10-watt speaker systems. The attenuator measures 2-3/4" W x 4-1/2" H x 2-3/4" D and weighs 13 oz.

Main Features

• Adjusts loudspeaker output levels on 25V and 70V systems
• Model controls up to 10-wattspeaker systems
• 10 attenuation steps and an off setting
• Attenuation in 3 dB increments except for two lowest settings, which provide 6 dB reduction increments
• Mounts in standard single electrical box
• Simple connections
