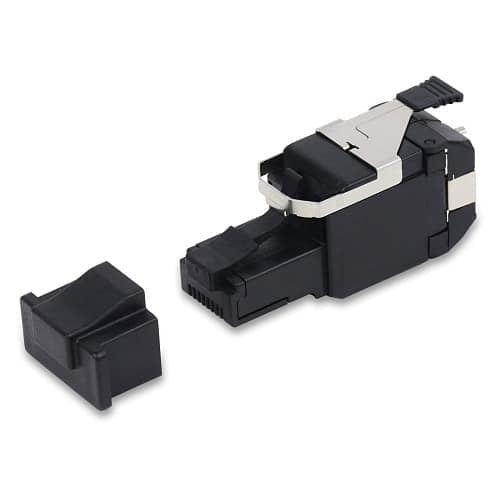

Belden RVAFPUBK-B24 REVConnect 10GX UTP Field Mount Plug, Black

Suitable Applications: 10GX System, TIA Category 6A, ISO Class EA, 10GBASE-T. Please see Installation Guide PX106434.

Main Features

• Footprint/Type KeyConnect
• Tool Compatibility RVUTT01 Termination Tool
• Plug /Jack Compatibility RJ45
• Termination Front Connection Mated Connection
• Termination Front Connection Durability 750 cycles
• Termination Rear Connection Mated Connection
• Termination Rear Connection Durability 200 cycles
• Cable/Connector Retention 15 lbs.
• Connector/Hardware Retention 20 lbs
• Plug/Connector Retention 11.250 lbs
• UL Rating UL94V-0
• Category 6A
• TIA/EIA Compliance Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
• IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
• Environmental Space: Indoor
• Other Specification: UL 1863, IEC 60603-7, FCC part 68-F
