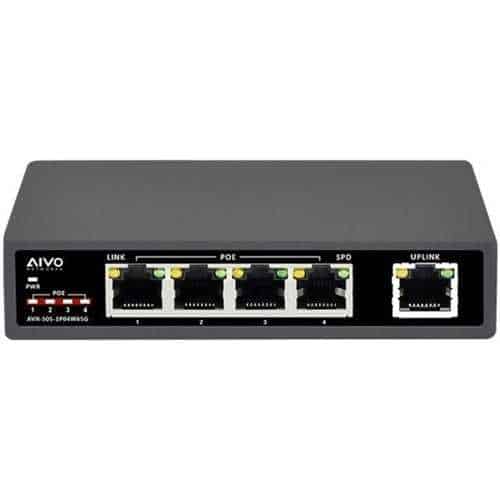

AVYCON AVN-S05-1P04W65G 5-Port 65W Gigabit PoE Switch

AVYCON AVN-S05-1P04W65G 5-Port 65W Gigabit PoE Switch

MPN: AVN-S05-1P04W65G

$100.48
$100.48
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Out of stock
View full details
The AVN-S05-1P04W65G is compact 5 port Gigabit PoE/PoE+ switch, with all ports supporting 10/100/1000 Mbps Auto-negotiation and Auto-MDI/MDIX. The 4 PoE ports can automatically detect and provide power for any connected 802.3at/af Powered Device (PD), such as VOIP Phones, APs, IP Phones and IP Cameras. All PoE ports support the IEEE802.3af/IEEE802.3at standard, with a maximum output of 30W per each port and a total PoE budget of 58W.

FEATURES

  • IEEE802.3af / IEE802.3at Compliant
  • 5 x 10/100/1000 Base-TX Mbps Ports
  • 4 x PoE / PoE+ ports, with each port supporting a 30W max. power output
  • Total PoE budget of 58W
  • Industrial rated power supply for increased stability
  • 2K Entry MAC Address table with Auto-Learning and Auto-Aging
  • High backplane bandwidth of 10Gbps
  • IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • Advanced surge protection for both power and data ports
  • Compact and durable metal case for better reliability
  • EMI standards complies with FCC, CE class B
