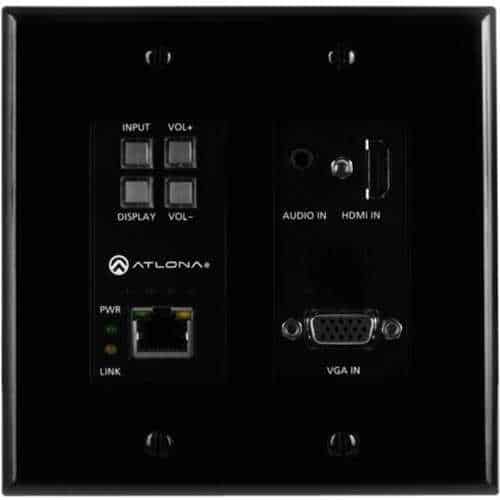

Atlona AT-HDVS-200-TX-WP-BLK Audio/Video Switchbox

The AT-HDVS-200-TX-WP is part of the Atlona HDVS Series of HDBaseT extenders with AV switching and scaling, plus automatic display control and automatic input selection. See below for a complete listing of transmitters and receivers. HDVS Series HDBaseT Extenders with AV Switching and Scaling Product Compatibility The AT-HDVS-200-TX-WP is compatible with the AT-HDVS-200-RX receiver and HD scaler, and can also provide remote 4K/UHD input switching for Atlona HDBaseT-equipped switchers and matrix switchers. Additionally, the AT-HDVS-200-TX-WP is ideal for 4K/UHD extension to the AT-UHD-EX-100CE-RX-PSE receiver - available together as the 4K-HDVS-WP-EXT kit. See below for a complete listing of compatible products. Atlona Product Compatibility Table The Atlona AT-HDVS-200-TX-WP is a 2×1 switcher and HDBaseT transmitter with an HDMI input plus a VGA input with audio. The HDVS-200-TX-WP features a US two-gang, Decora-style wallplate form factor. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to either video input and embedded for HDBaseT transmission. The HDVS-200-TX-WP is designed for use with the AT-HDVS-200-RX receiver and HD scaler, but can also be used with the AT-UHD-EX-100CE-RX-PSE receiver for 4K/UHD extension, as well as Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the HDVS-200-RX or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).

Main Features

• US two-gang enclosure for Decora-style wallplate openings
• 2×1 HDBaseT switcher
• Remotely powered via PoE (Power over Ethernet)
• Automatic display control
• Automatic input selection using hot plug detect and video detection technology
• TCP/IP and RS-232 control of switcher
• 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
• Extended distance HDBaseT extension
• EDID management
• HDCP management
