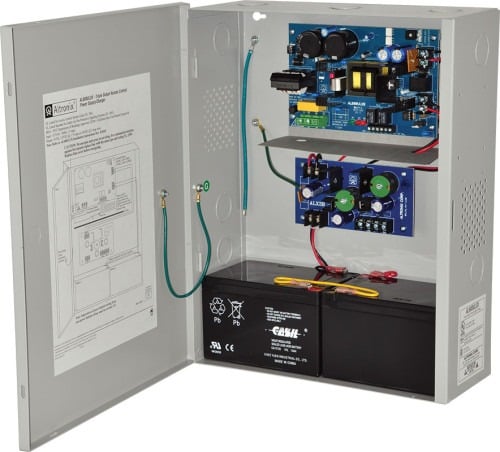

• Electrical panel with wiring and components inside a metal enclosure
1 1

Altronix

Altronix Proprietary Power Supply AL600UL3X

Altronix Proprietary Power Supply AL600UL3X

MPN: AL600UL3X

$460.07
$460.07
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Out of stock
View full details
Altronix AL600UL3X triple output power supply/charger is designed for use with access control systems and accessories. It converts a 115VAC / 60Hz input into three (3) individually PTC protected 5VDC, 12VDC and 24VDC regulated outputs.
    • 5VDC, 12VDC, 24VDC simultaneous outputs.
    • 5VDC @ 1.75A continuous supply current.
    • 12VDC @ 1.75A continuous supply current.
    • 24VDC @ 3A continuous supply current.
    • Two (2) Class 2 Rated PTC protected power limited outputs (5VDC and 12VDC outputs) and one (1) PTC protected output.
    • Outputs are rated @ 2.5A.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
