Altronix PDS8K1 Power Kit

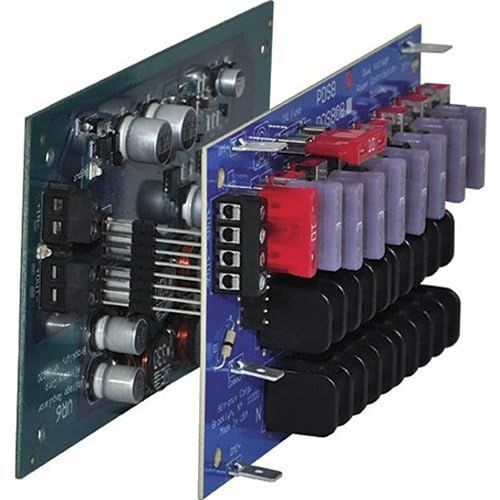

Altronix PDS8K1 VR6 Voltage Regulator and PDS8 Power Distribution Kit, Two-Piece Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply curent. It reduces the cost of adding an additonal power supply to achieve 24VDC and 12VDC or 5VDC simultaneously. Altronix PDS8 dual input power distribution modules are designed to steer the power from either two (2) low voltage AC or DC power sources. The two Inputs can be either, both DC (e.g. 12VDC and 24VDC) or both AC (e.g. 16VAC and 24VAC). That power is distributed over a total of eight (8) fuse protected outputs. The spade connectors allow you to daisy chain multiple PDS8 modules. This feature allows you to distribute the power over more outputs for larger systems. Includes

• VR6 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
• PDS8 Dual Input Power Distribution Module, 8 Fused Outputs
