Altronix

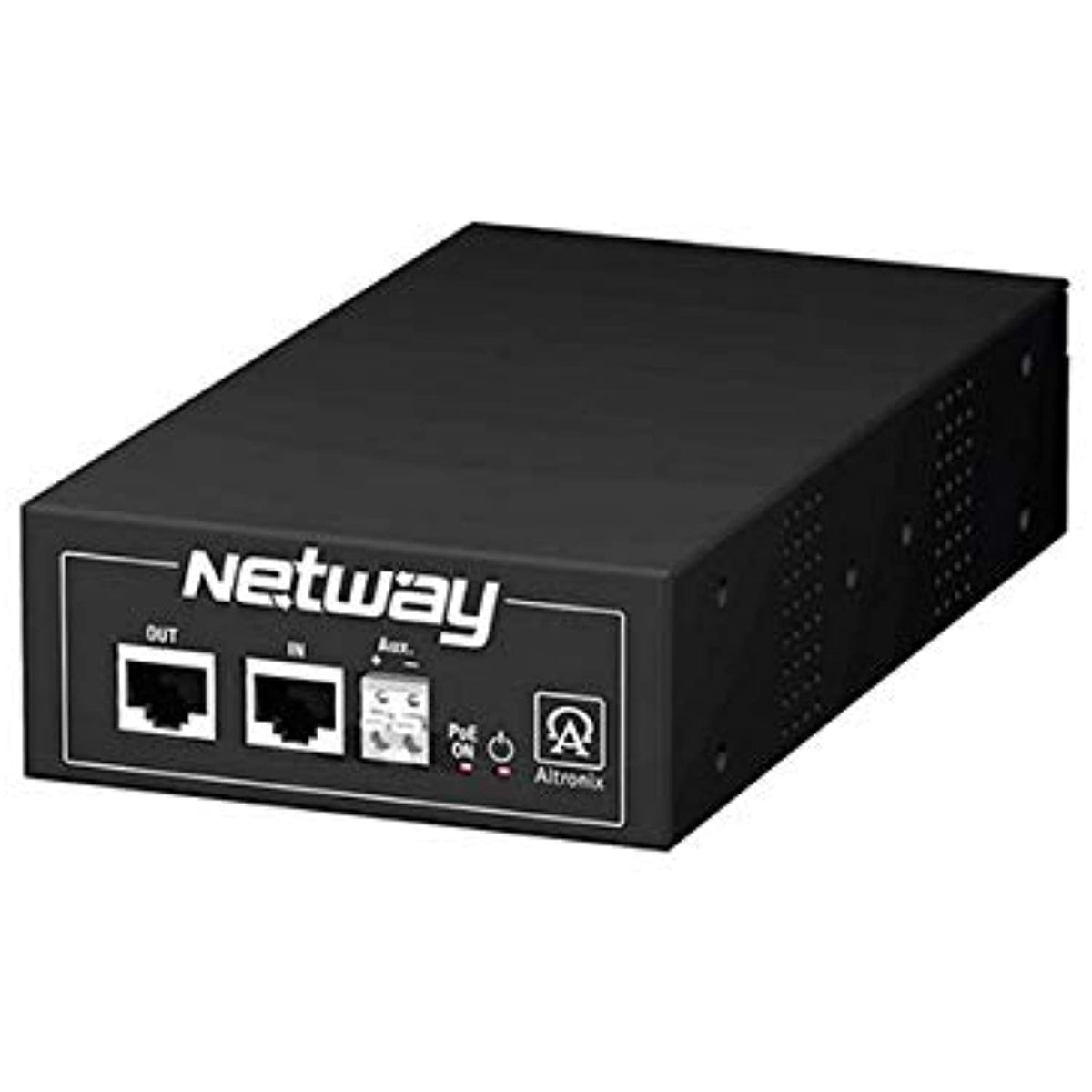

Altronix NetWay1D Single-Port Midspan Injector, PoE/PoE+/Hi-PoE or 56VDC Auxiliary Output

Altronix NetWay1D Single-Port Midspan Injector, PoE/PoE+/Hi-PoE or 56VDC Auxiliary Output

MPN: NETWAY1D

$226.27
$226.27
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Out of stock
View full details
Altronix NetWay1D Single Port Midspan Injector provides Hi-PoE (60W) power and passes data for PoE compliant device. PoE device may be located up to 100m (328 ft.) from the unit.

Main Features

  • IEEE 802.3af (15W), IEEE 802.3at (30W), and Hi-PoE (60W) compliant
  • Universal (115V AC or 230V AC) power input.
  • Power provided using all 4 pairs on structured cable
  • 10/100/1000Mbps, half/full duplex, auto negotiation.
  • Port provides up to 60W max.
  • PoE and Power LED.
  • Aux. Class 2 power-limited output rated 56VDC/60W
  • Auto detection and protection of legacynon-PoE cameras/devices.
  • Extends Network link distance in an industrial environment.
  • UL Listed in the U.S. and Canada
