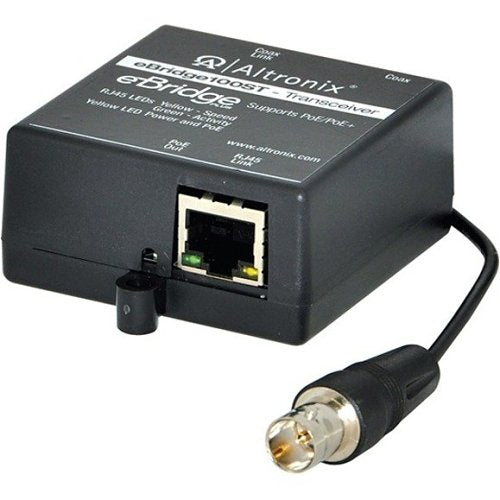

Altronix eBridge100ST EoC Single-Port Small Transceiver

Altronix eBridge100ST EoC Single-Port Small Transceiver

$180.40
$180.40
Sale Special Order
Shipping calculated at checkout.

View full details
eBridge100ST EoC transceiver transmits data at 100Mbps, Full Duplex over Coax cable to a paired eBridge receiver and provides power in a PoE+ compliant format to an enabled device/camera. The eBridge receiver is available in various options (see compatibility list below/Altronix.com) and is powered by an external midspan, such as the Altronix Netway series. The receiver passes PoE+ power over the same coax cable to the eBridge100ST transceiver, which, in turn, passes this power to an enabled IP camera/device.
These plug and play units facilitate cost-effective solutions for IP devices. They can be installed at distances greater than 300m. They provide a simple way to replace legacy analog products with new IP devices over existing coax. eBridge100ST is compatible with the following Altronix receivers: eBridge100RM, eBridge400PCRM, eBridge800PCRM or eBridge1600PCRM.

Main Features

  • Ethernet over coax/CAT5e Mini Transceiver.
  • Transmits IP video/data over coax up to 300m or CAT5e up to 500m.
  • 100Mbps full duplex.
  • Supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at).
  • CE Approved.
