Altronix

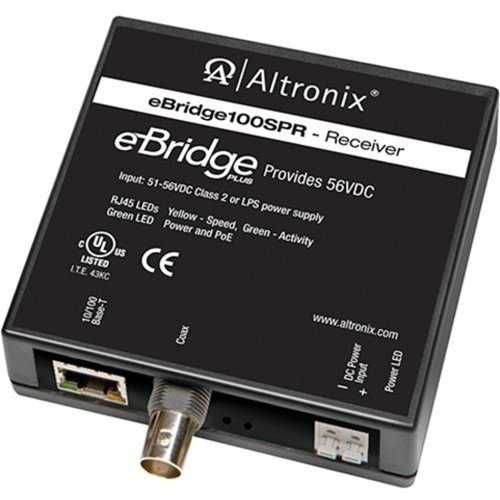

Altronix eBridge100SPR replaces eBridge1SPR EoC Single Port Receiver

Altronix eBridge100SPR replaces eBridge1SPR EoC Single Port Receiver

$188.16
$188.16
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

View full details

Altronix eBridge100SPR replaces eBridge1SPR EoC Single Port Receiver, 100Mbps, Generates PoE/PoE+/Hi-PoE 60W, 51-56VDC, Used w/ eBridge200WPM or eBridge4SPT

The eBridge100SPR passes data and sends power over the coax to the eBridge200WPM 2-port Outdoor Transceiver. Data transmission and power over the Coax is possible up to 300m. Maximum range from head end to the PoE camera/device is 500m taking into consideration that up to 100m of structured cable may be deployed at each end. Built in IP management allows for remote camera reset, monitoring and reporting via various IP protocols. This model replaces eBridge1SPR

Main Features

  • Ethernet over coax/CAT5e Receiver for eBridge200WPM.
  • Transmits IP video/data over coax up to 300m or CAT5e up to 500m.
  • 100Mbps full duplex.
  • Supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at).
  • UL/cUL Listed. CE Approved.
