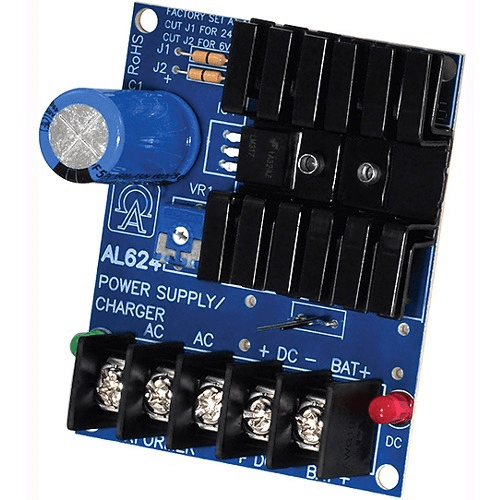

• Power supply/charger module with blue and black components on a white background

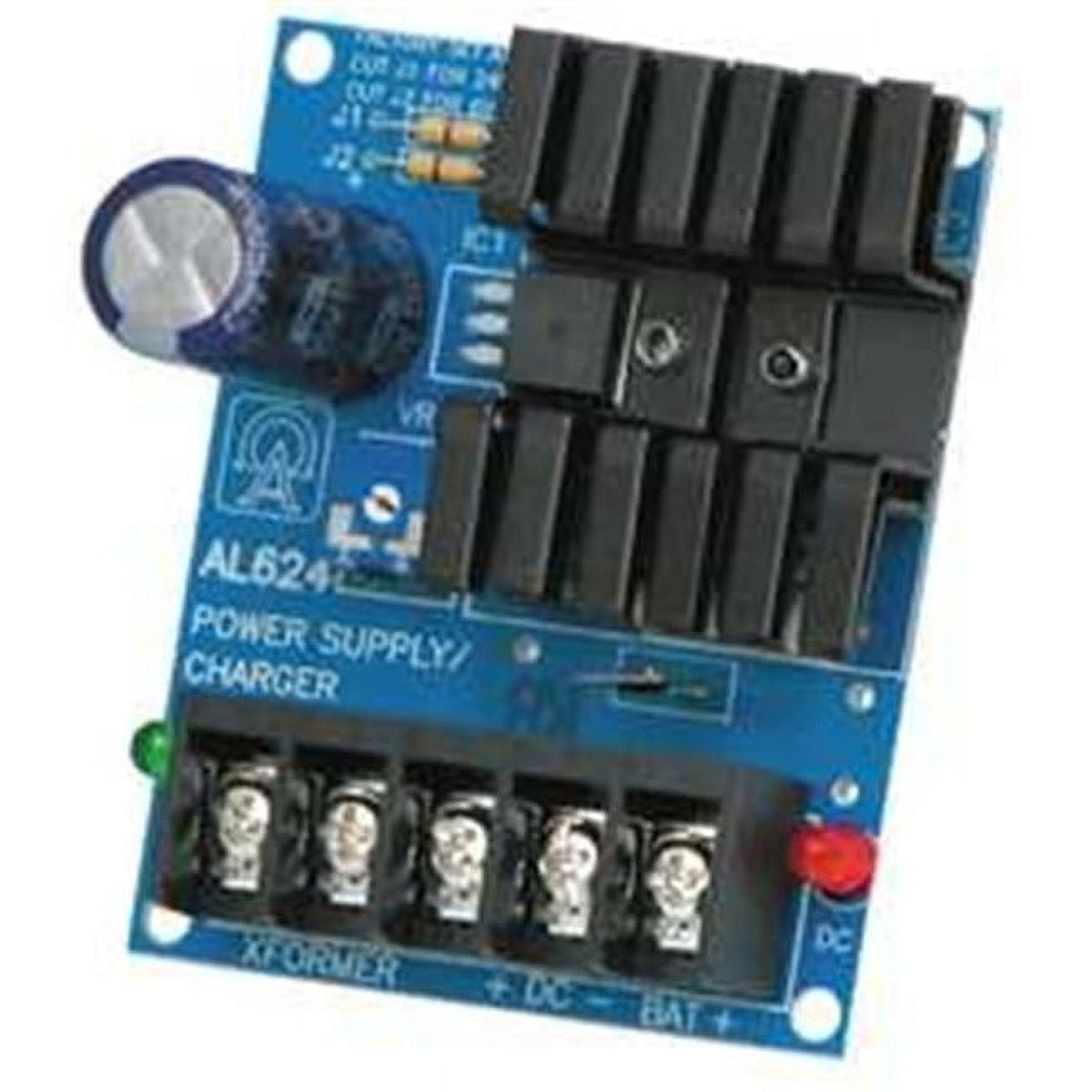

  • Power supply/charger module with components on a blue background
1 2

Altronix

Altronix AL624 Proprietary Power Supply

Altronix AL624 Proprietary Power Supply

MPN: AL624

$19.21
$19.21
Sale Special Order
Shipping calculated at checkout.

858 in stock
View full details

Altronix AL624 power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.

Main Features

  • Voltage 16VAC to 24VAC, 20VA to 40VA.
  • Voltage 6VDC/12VDC/24VDC selectable.
  • Current 6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current.
  • Other Short circuit and thermal overload protection.
  • Filtered and regulated.
  • Type Sealed lead acid or gel type.
  • Failover Upon AC loss, instantaneous.
  • Input Input voltage is present.
  • DC Output Powered.
  • Dimensions (L x W x H) 2.5” x 3” x 1.5” (63.5mm x 76.2mm x 38.1mm).
