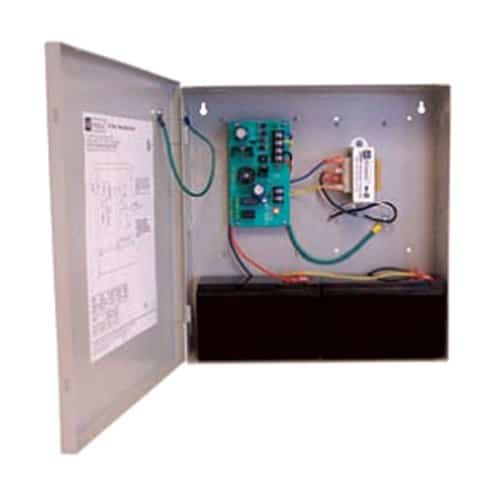

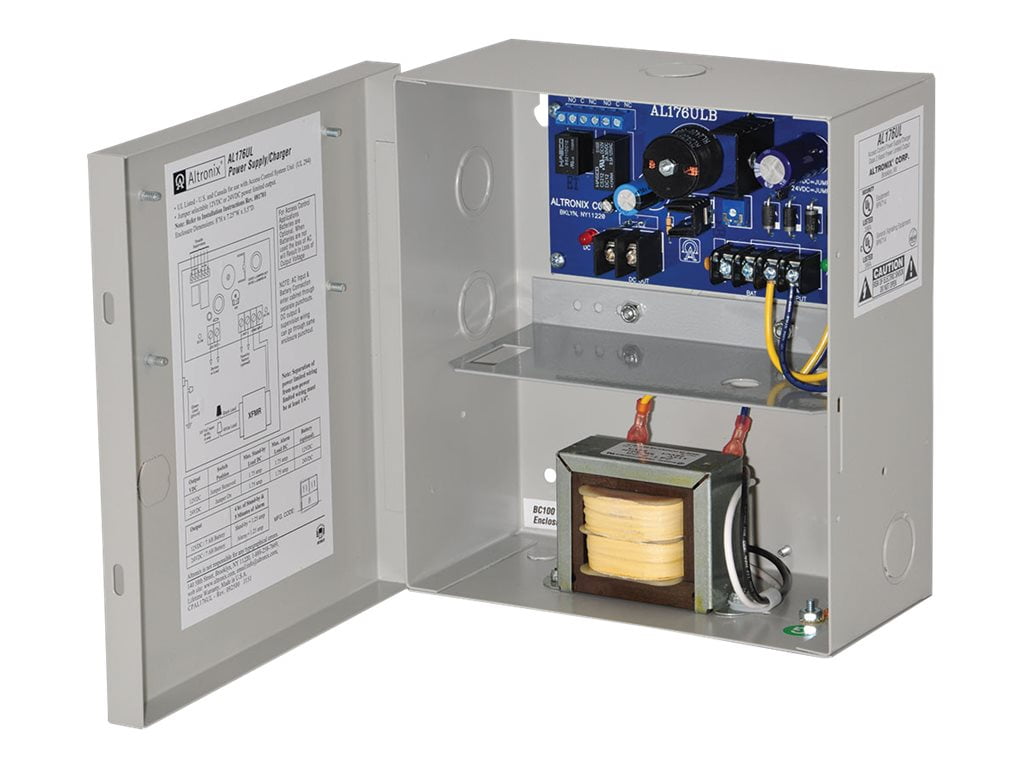

Altronix AL176UL Access Control Power Supply/Charger

Altronix AL176UL is a Single Output Power Supply/Charger that converts a 115VAC 50/60Hz input into a PTC protected 12VDC or 24VDC output.

• Input 115VAC/60Hz, 0.6A.
• 12VDC or 24VDC selectable output.
• 1.75A supply current.
• Class 2 Rated power limited output.
• PTC protected outputs, rated @ 2.5A.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).
• AC input and DC output LED indicators.
• Operating 0ºC to 49ºC (32ºF to 120ºF).
• Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
• Relative Humidity 85% +/- 5%.
• System AC input VA requirement: 69VA.
