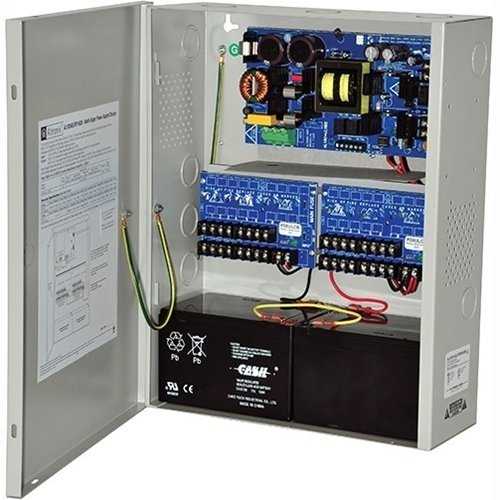

• Electrical panel with wiring and components inside a metallic enclosure

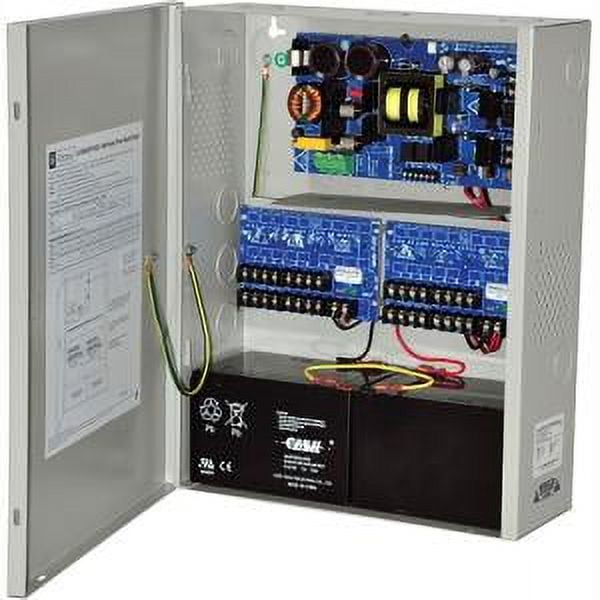

  • Electrical panel with wiring and components on a white background
1 2

Altronix

Altronix AL1024ULXPD16CB Power Supply/Charger

Altronix AL1024ULXPD16CB Power Supply/Charger

MPN: AL1024ULXPD16CB

$403.60
$403.60
Sale Special Order
Shipping calculated at checkout.

Low stock: 10 left
View full details
Altronix AL1024ULXPD16CB Power Supply/Charger, 16 PTC Class-2 Outputs, 24VDC at 10A, BC400 Enclosure AL1024ULXPD16CB is a multi-output power supply/charger which converts a 115VAC, 60Hz input into sixteen (16) 24VDC Class 2 Rated power limited outputs.
Input
  • Input 115VAC, 60Hz, 4.2A.
  • Input fuse rated @ 3.5A/250V.
Output
  • 24VDC output.
  • 10A of continuous supply current for Access Control applications.
  • 8A of continuous supply current for Fire Alarm applications.
  • Sixteen (16) Class 2 Rated PTC protected power limited outputs (auto-resettable).
  • Outputs are rated @ 2.5A.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
Battery Backup
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
