Altronix

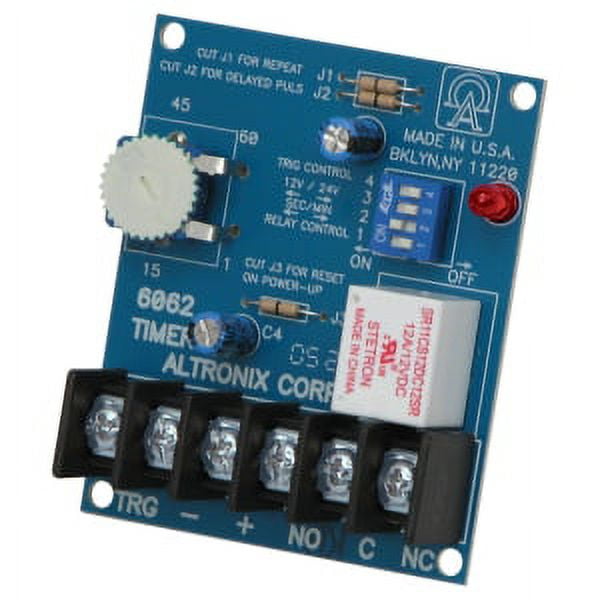

Altronix 6062 Multi-Purpose Timer Board

Altronix 6062 Multi-Purpose Timer Board

Regular price $27.50
Regular price Sale price $27.50
Sale Special Order
Shipping calculated at checkout.

Quantity
View full details
Altronix 6062 programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse, and Pulser/Flasher.

Main Features

  • Multi-Function Timer
  • 12VDC or 24VDC operation
  • SPDT contacts rated @ 8A/115VAC
  • 1 sec. to 60 min. adjustable timing range.
  • One second momentary relay activation at the end of timing cycle.
