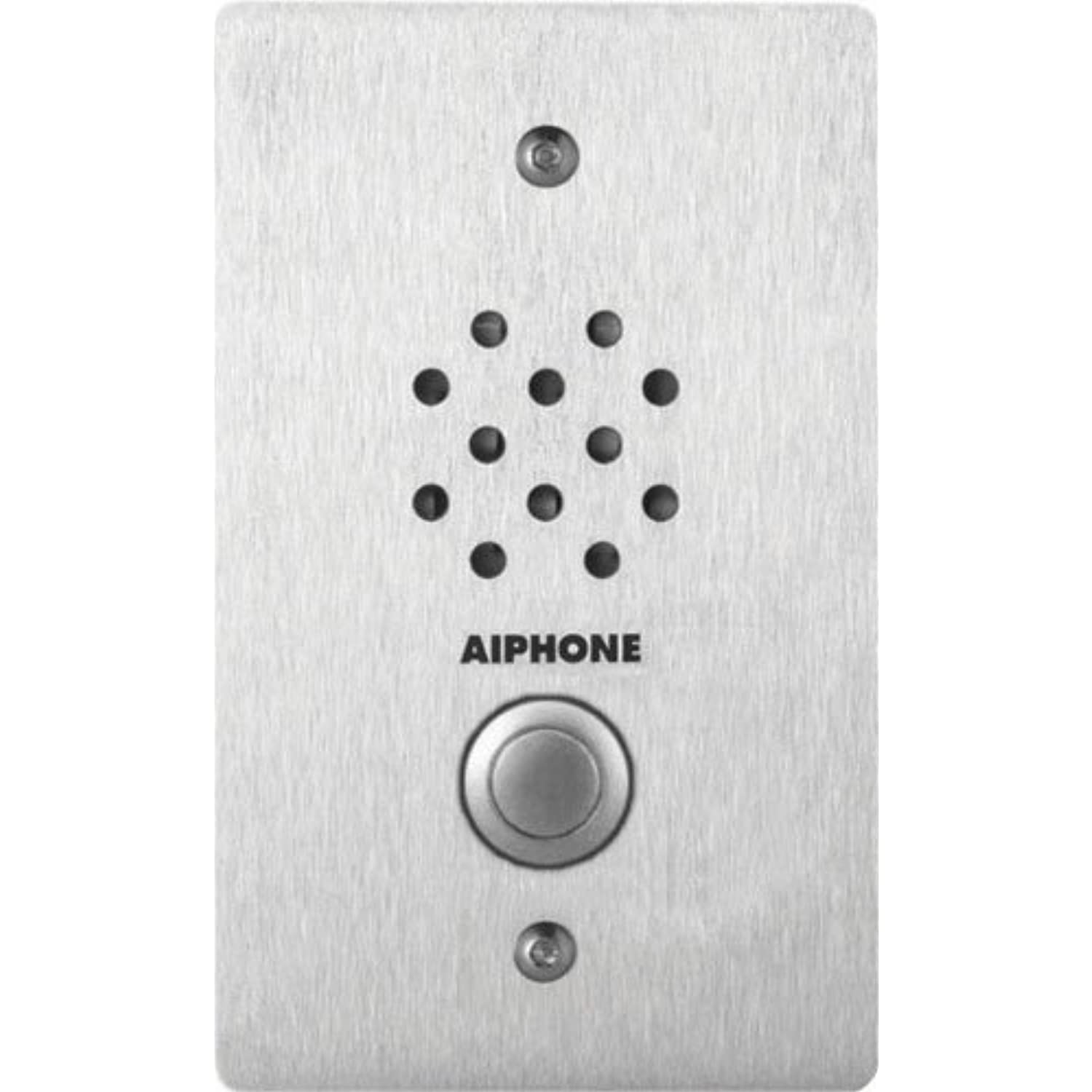

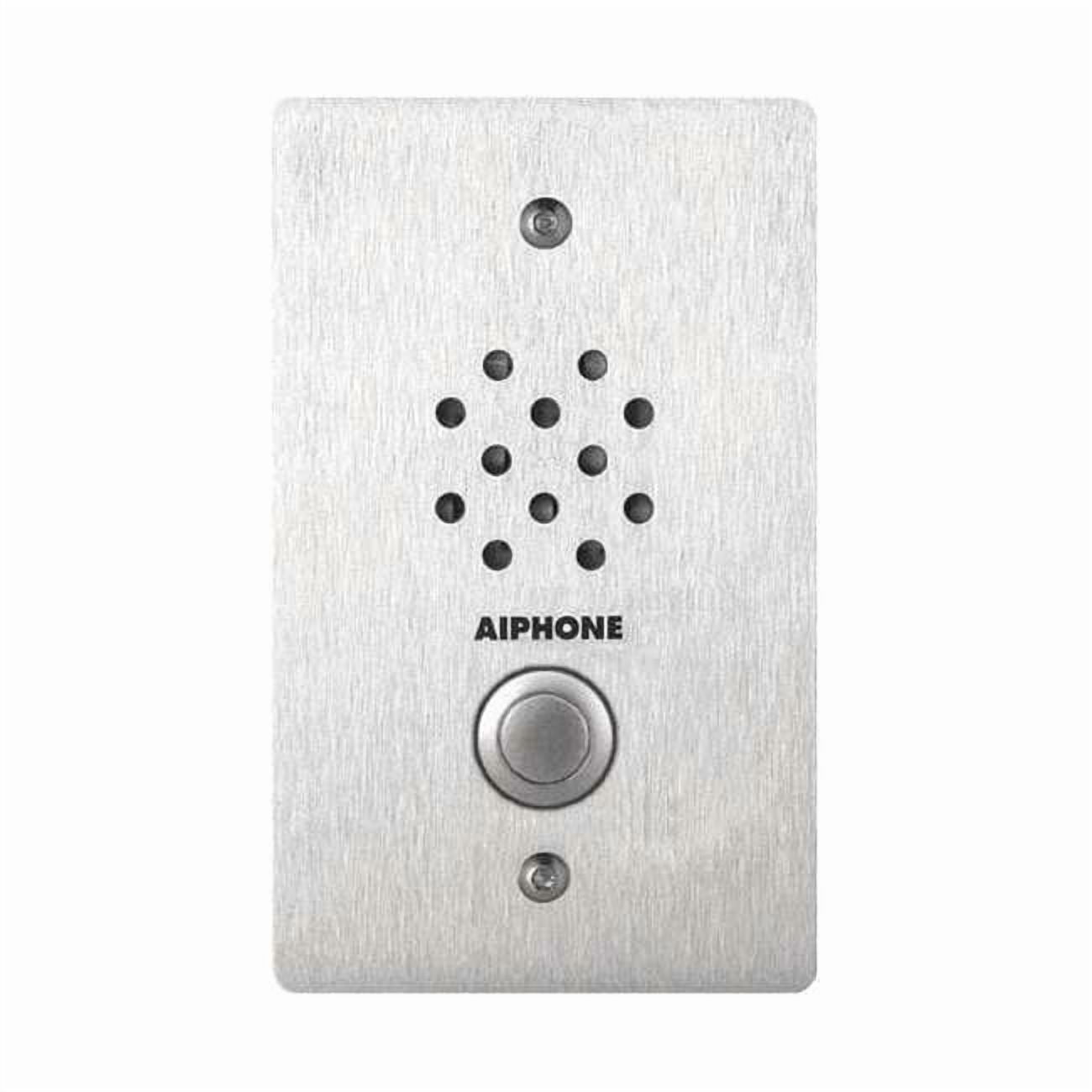

Aiphone LE-SS-1G 1-Gang Door Station, Vandal and Weather Resistant, Stainless Steel

The LE-SS-1G is a 1-gang stainless steel vandal proof and weather resistant sub station designed for use with the LEM, LEF, LAF/LDF-C, AP-M, and MP-S systems. This unit is constructed with 12 gauge stainless steel and can be flush mounted into a 1-gang box, or surface mounted with the SBX-SS-1G. Each unit includes tamper proof screws and a tool for installation.

Main Features

• Provides communication and call-in
• Stainless steel panel
• Weather and Vandal Resistant
• Moisture and puncture resistant speaker
• Hands-free communication when master answers
• Mounts flush in wall with 1-gang box/ring or directly on wall with SBX-1G
• Wire Type: 3 cond., overall shield - use Aiphone #822203(22AWG) or #821803(18AWG)
• Wire Distance: Door Station to farthest Master Station: 650'(22AWG) 1,600(18AWG)
• Temperature Rating: -40° ~ 1850F (-40°~85°C)
• Dimensions: 4-1/2" H x 2-3/4" W x 2" D
