Aiphone

Aiphone C-123LW Dual Master ChimeCom Set, Door, Masters, DAK-2S

Aiphone C-123LW Dual Master ChimeCom Set, Door, Masters, DAK-2S

Regular price $296.34
Regular price Sale price $296.34
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Quantity
View full details

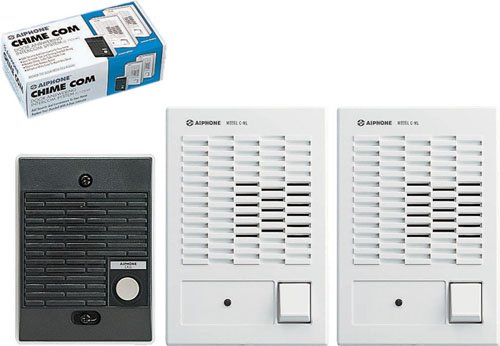

C-123LW: Dual master set includes a door station (C-D) and a 2 master stations (C-ML/A). Additional masters may be added. Each master requires a separate power supply, either the SKK-620 or 4 "C" batteries. The door station calls the masters by pressing a call button that initiates a chime. Communication is Push to talk/release to listen at the master and hands free at the door station. Communication times out after being idle for twenty seconds. Main Features
  • Box set includes 2x C-ML/A, 1x C-D, and 1x DAK-2S
  • Chime from door station, answered from either inside station
  • Door release
Specs
  • Power Consumption: 85mA (6V DC) max.
  • Output: 100mW
  • Type of communication: Push-to-talk (simplex)
  • Door Release Contact: N/O dry contact, 30V AC/DC 1A
  • Mounting: Wall mount
  • Wire Type: 2 cond., overall shield - use Aiphone #822202(22AWG) or #821802(18AWG)
  • Wire Distance: Door Station to farthest Master Station: 245'(22AWG), 590'(18AWG)
