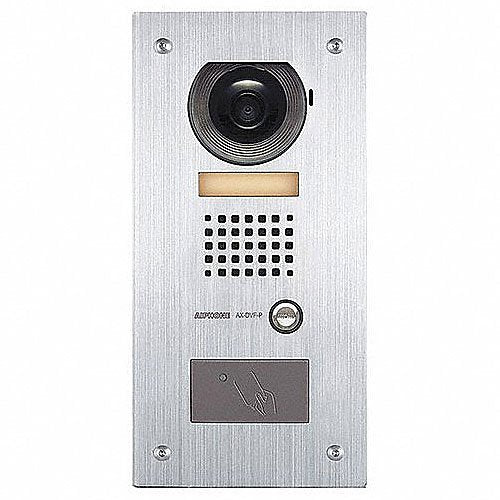

Aiphone AX-DVF-P Video Door Station with HID ProxPoint Plus Reader, Flush Mount Stainless Steel

The AX-DV-P is a surface mount color video door station for the AX Series. The AX-DVF-P is a flush mount color video door station. Both units have a built in HID ProxPoint Plus card reader (6005B). The reader connects to an access control system while the camera connects directly to the AX Central Exchange Unit using CAT-5e wire with an RJ45 jack.

Features

• Cat-5e wired to central exchange unit
• Polycarbonate lens cover
• Fixed camera provides clear video
• LED illumination automatically turns on in low light conditions
• Embedded HID ProxPoint Plus card reader

Specs

• Communication: Hands-free
• Camera: Type: 1/4" CCD
• Area View: 2'1" vertical x 3'1" horizontal at 20"
• Protection Rating IP43 Temp. Rating: 14° ~ 140°F (-10°~60°C)
• Material: Stainless steel
• Mounting: Flush mount with included back box or surface mount with SBX-DVF-P
• Wire Type: Cat-5e Wire Distance: 980'
