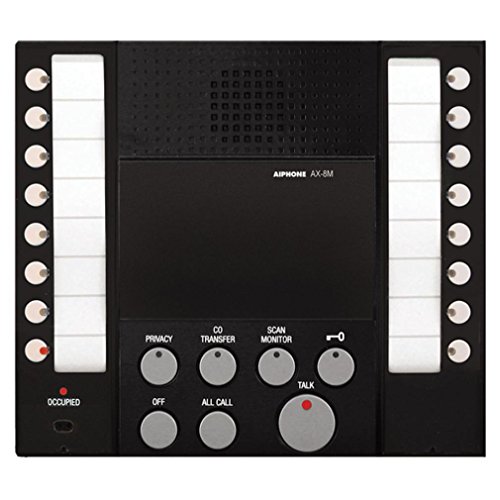

Aiphone AX-8M Audio Master with Buttons for up to 8-Masters Stations and 8-Doors or Sub Stations, Black

The AX-8M is an Audio only master station and can be one of the up to 8 masters supported in the AX Integrated Audio & Video Security system. Each AX-8M master station can initiate and answer calls from up to 7 additional master stations and up to 8 doors or substations. The master can be expanded with AX-16SW add-on selectors for a maximum capacity of 120 door / sub stations. Its streamline design is mountable on a wall or desk. When a door or substation calls, a tremolo tone rings.

 To answer the call, simply press the TALK button once and speak hands-free, or Press and Hold the TALK button to use as push-to-talk, release-to-listen. If access control is included, simply press the "key" button and the associated electric strike or magnetic lock will be activated. The AX-8M can answer the call from any audio-only or audio/video door/sub on the system.

 Main Features

• Hands-free or push-to-talk communication
• All Call or Group Call to master stations
• Scan monitoring

Specs

• Communication: Hands-free (VOX) or push-to-talk (simplex)
• Mounting: Surface mount directly to wall or desk mount - use MCW-S/A for an adjustable desk angle
• Wire Type: Cat-5e to Central Exchange Unit
• Wire Distance: 980'
