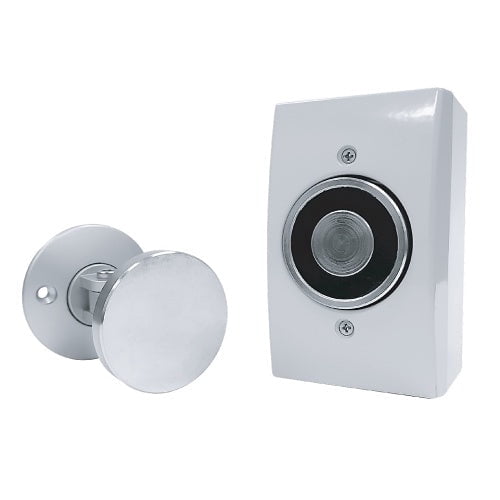

ADI PRO 0E-MAGDRHLDR Magnetic Door Holder, Surface and Flush Mount

The ADI PRO Magnetic Door Holder is designed for virtually any remote door release application. The UL-listed Magnetic Door Holder controls the release and closing of commercial and public area doors, including apartments, schools, hotels, hospitals and offices.

Fail-safe operation, tri-volt coils and an adjustable armature plate allow for easy and flexible installation. ADI PRO Magnetic Door Holders may be surface or flush mounted, with all mounting hardware included in the kit.

Main Features

• Surface or flush mounting options
• Multiple voltages: 12/24V, AC/DC, 120V AC
• 35 lbs (16kg) holding force
• Current Draw: 52mA 12VAC, 60mA 12VDC, 27mA 24VAC, 31mA 24VDC, 24mA 120VAC
• Armature plate adjusts to door alignment
• Used for door release in public, industrial and commercial applications
• 2-year warranty
• Optional extension bars available: 0E-EXTBAR3 (3") and 0E-EXTBAR7 (7")
