ADI PRO 0E-DC4811 3" Track Mount Magnetic Contact for Garage Doors

ADI PRO 0E-DC4811 3" Track Mount Magnetic Contact for Garage Doors

MPN: DC4811

$28.90
$28.90
Sale Special Order
Shipping calculated at checkout.

3421 in stock
View full details

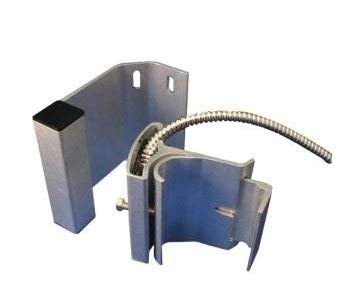

The 0E-DC4811 is a crush resistant track mount magnetic contact designed for commercial and residential applications. It mounts easily to roller tracks up to 3” and boasts heavy duty aluminum housing with vandal resistant construction.

Main Features

  • Easy installation track mount
  • Fits all roller tracks up to 3”
  • 27” (68.6cm) armored leads
  • Heavy duty, vandal resistant construction for durability and consistent performance
  • Reed Form: N/O Loop Type: Closed loop
  • Max. Contact Rating: 30VDC, 0.2A, 5W Max. Initial Contact Resistance: 0.20 Ω
  • Closed Gap: 2.5” (65mm) Departure Gap: 2.65” (67mm)
  • Magnet Dimensions (L x W x H): 3.5” x 1.7” x 3.2” (88.9 x 43.2 x 81.2mm)
  • Switch Dimensions (L x W x H): 2.6” x 1.8” x 3” (66 x 46 x 76.2mm)
