Description

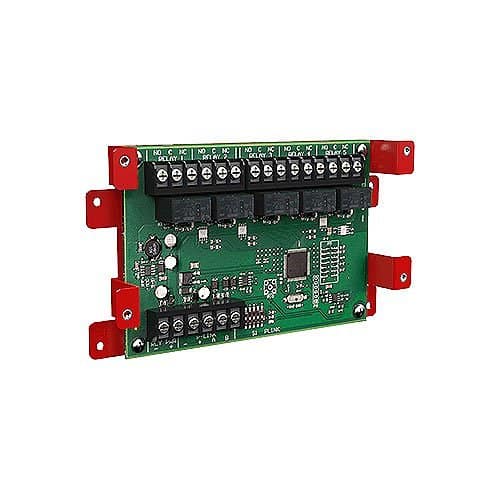

The RLY-5 is a relay expander for compatible Potter fire alarm control panels. The RLY-5 communicates with the control panel via the RS-485 (P-Link) communication bus providing 5 user configurable relay outputs programmable with the Potter Configuration Software.
Main Features
- Mounts with included stacker bracket
- Provides 5 user configurable relays
- Contact Rating of 24VDC / 3.0A, 125 VAC / 3.0A (resistive)
- Maximum 31 RLY-5s per panel
- Maximum P-Link wire length of 6,500 feet.
- Product includes a 5 year warranty
- UUKL Listed for Smoke Control
