Description

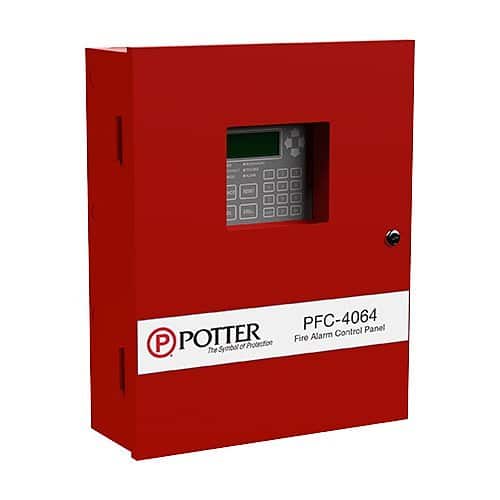

The PFC-4064 Conventional Fire Panel is a compact, expandable panel designed to monitor all facets of a fire alarm system and communicate the status to a monitoring station. The PFC-4064 panel is a listed and approved microprocessor-based conventional fire panel and complies with UL-864, NFPA-70, and NFPA-72.
The panel is provided with six (6) inputs and four (4) 24VDC, 3.0 Amp Notification Appliance Circuits (NAC) with strobe synchronization. The 5.0 Amp power supply provides ample power to meet any jurisdiction’s requirements and will house and charge up to two (2) 55 amp/hour batteries. In addition, the panel has the Potter P-Link for connection to system accessories. The panel also has a 1.0 Amp auxiliary power output for controlling ancillary fire alarm functions.
Main Features
- 6 Programmable Initiating Device Circuits
- System is expandable to 192 input circuits using the IDC-6 expansion module
- 5.0 Amp Power Supply
- 4 Notification Circuit rated at 3.0 Amps
- Strobe Synchronization for Gentex, AMSECO, System Sensor and Cooper/Wheelock
- One programmable auxiliary output rated at 1.0 A
- 4 x 20 LCD display with system LEDs for clear system status
- P-Link RS-485 bus supports 31 system accessories
- Built-in Ethernet Connection with listed IP Communicator
- Ability to E-mail system status, reports and system configuration
