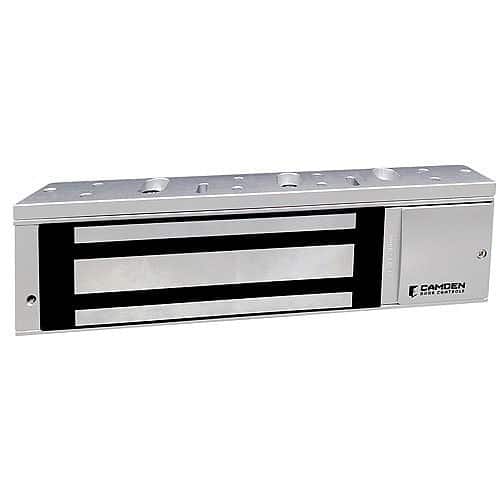

Camden CX-91S-12TDS 1200 lbs. Single Door lock

CX-91 Series 600 lbs. & 1200 lbs. Single Door Surface and Mortise Mount Magnetic Locks offer the best performance and value. A built-in 'TLS' option provides an adjustable timer, lock sensor, relay and LED. TDS option includes door status switch as well. Camden's Magnetic Locks are easily installed. A metal mounting template is packaged with the unit. Vandal resistant construction is built to last - lifetime warranty!

Main Features

• 1200 lbs. (544 kg.) Holding Force
• Weather and vandal resistant construction proven over thousands of installations
• Surface Mount
• Compatible with all access / egress systems
• Field selectable 12/24 VDC operation
• Bond Sensor: 2A @ 24 VDC
• Door Status Switch: 0.5A @ 28V AC/DC
• On board MOV power surge protection prevents damage to the magnetic lock
• Time Delay: 5 - 25 seconds
• Body Dimensions: 10-1/2"W x 2-5/8"H x 1-9/16"D (266mm x 67mm x 40mm)
• Armature Plate Dimensions: 7-9/32"W x 2-13/32"H x 5/8"D (185mm x 61mm x 16.5mm)
• also available in 600 lb option:  CX-91S-06TDS
