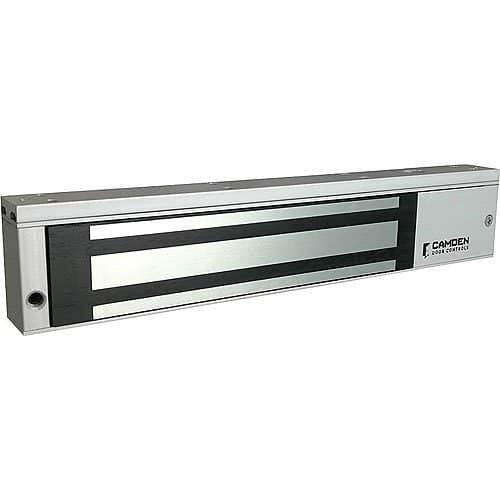

Camden CX-91S-06TDS 600 lbs. Surface Mount Single Door

CX-91 Series 600 lbs. & 1200 lbs. Single Door Surface and Mortise Mount Magnetic Locks offer the best performance and value. A built-in 'TLS' option provides an adjustable timer, lock sensor, relay and LED. TDS option includes door status switch as well. Camden's Magnetic Locks are easily installed. A metal mounting template is packaged with the unit. Vandal resistant construction is built to last - lifetime warranty!

Main Features

• 600 lbs.(272 kg.) Holding Force
• Weather and vandal resistant construction proven over thousands of installations
• Surface Mount
• Compatible with all access / egress systems
• Field selectable 12/24 VDC operation
• Current Draw510mA / 12 VDC | 285mA / 24VDC
• Bond Sensor: 2A @ 24 VDC
• Door Status Switch: 0.5A @ 28V AC/DC
• On board MOV power surge protection prevents damage to the magnetic lock
• Time Delay:5 - 25 seconds
• Body Dimensions:9-7/8"W x 1-5/8"H x 1-1/8"D (250mm x 42mm x 27mm)
• Armature Plate Dimensions:7-1/4"W x 1-1/2"H x 15/32"D (185mm x 38mm x 12mm)
• compatible with:  CX-MA0613 Door Controls
• also available in 1200 lb option :  CX-91S-12TDS
