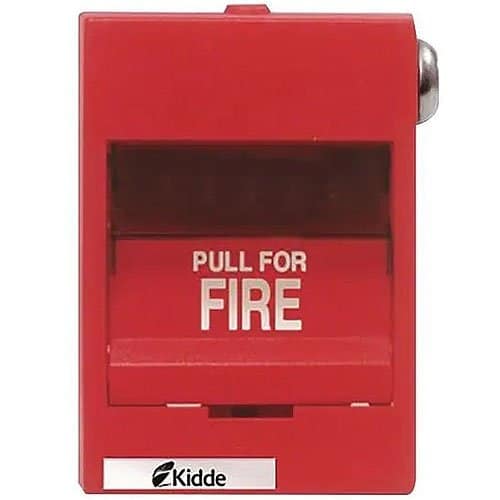

Kidde K-276B-1110 Single Action Fire Alarm Manual Pull Station with Screw Terminals, Single Pole, Open Circuit and Tool Reset

The Kidde Cat. No. 276B/277B series noncoded fire alarm stations are contemporary styled Lexan stations and are flexibly designed to meet a wide variety of application requirements and operational sequences. The Cat. No. 276B series are single action stations with terminals for field wiring connections. The Cat. No. 277B series are also single action stations but use 6" (150mm) wire leads for field wiring connections. All types are available with single or double pole alarm contacts which can be normally open, normally closed or a combination of both. Either a key or tool (depending on station selected) is required to reset mechanism. See specification chart for specific catalog numbers and features. For semi flush mounting use a standard North-American 4 inch square box with single gang plaster cover having an overall minimum depth of 2-1/4 inches (57mm). For surface mounting use a surface back box.

Main Features
