Description

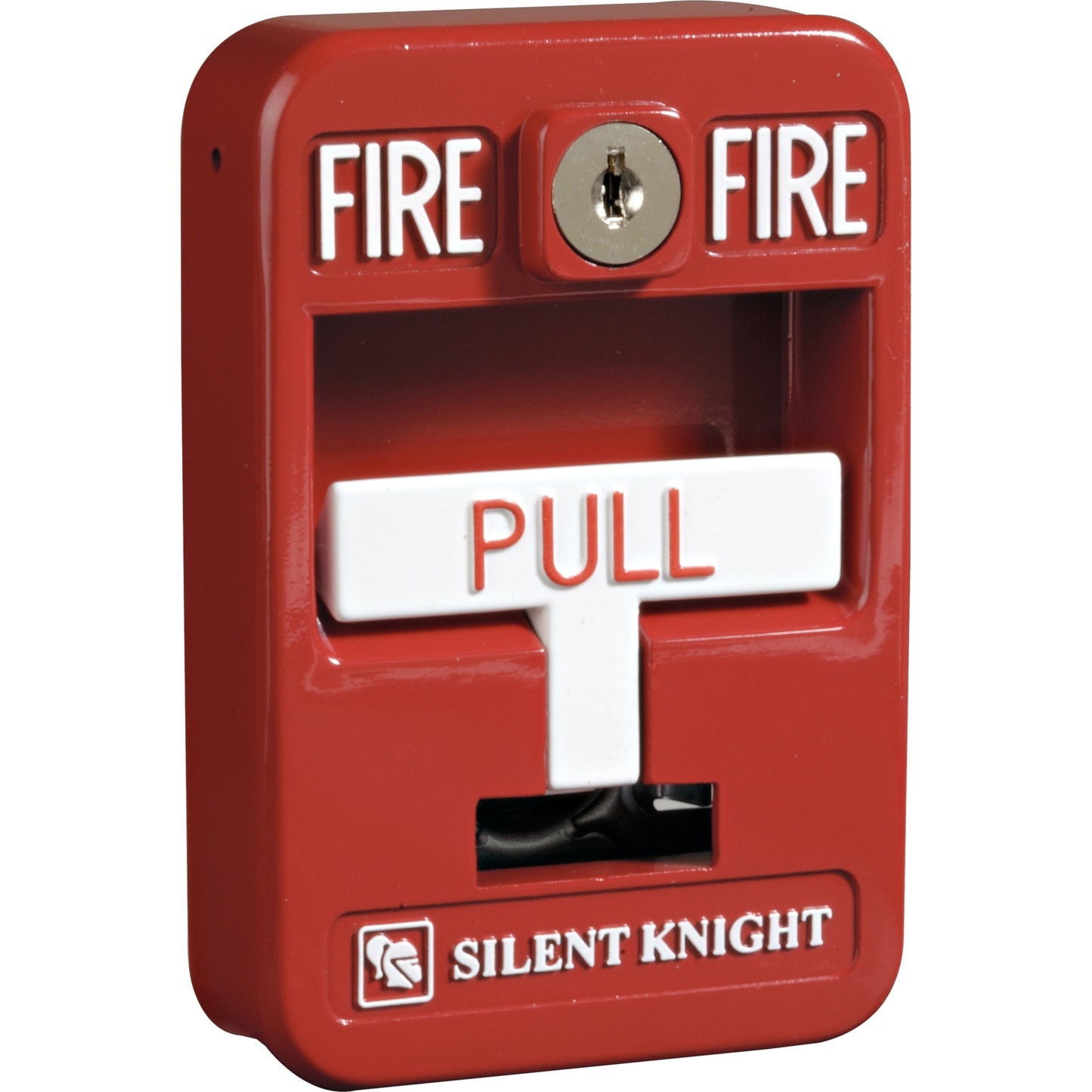

The PS-SATK manual pull station features a high-quality, die cast metal construction. Available in a single action design with SPST switch, and terminal strip connections. The normally open contact, which closes when the pull station is activated, is rated for 1 amp, at 125 VAC or 30 VDC. The contacts are gold-plated to avoid risk of corrosion. All models in the series have been tested by UL for compliance to the latest requirements of the Americans with Disabilities Act (ADA).
Single Action Pull Station Features
- UL listed
- CSFM approved
- MEA (BSA) approved
- ADA compliant
- Single or dual action
- Terminal connections
- Reset using the same keys as
- Silent Knight enclosures
- Surface mount backboxes available
- High-gloss red enamel finish on die cast metal
- Corrosion-resistant gold-plated contacts
Operation
Operate single action pull stations by simply pulling the handle on the front of the Station as far down as it will go, at which point the handle locks into place and is easily visible from up to 50 feet. Each unit includes a scored acrylic break rod for applications where it is necessary. Reset the handle by opening the station with a key, placing the handle in the normal upright position and then relocking the station.
