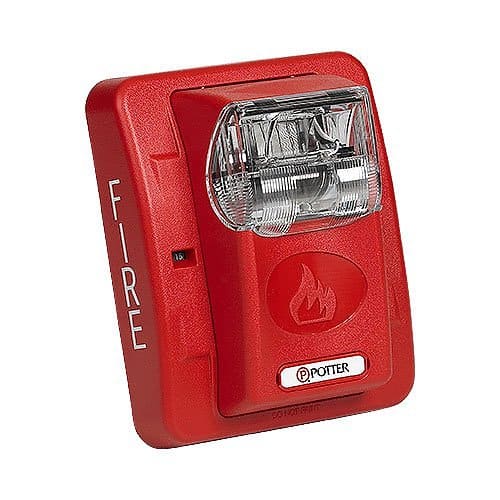

The S/HS24-177 Series is a low profile strobe, or horn/strobe combination that offers dependable audible and visual alarms with the absolute lowest current available.
The S/HS24-177 Series has a minimum flash rate of 1Hz regardless of input voltage.
The S/HS24-177 Series is shipped with the standard 4" mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing.
The S/HS24-177 Series also features the patented Checkmate® -Instant Voltage Verification feature which allows the installer to measure the voltage drop and match it to the blueprint.
The S/HS-177 Series appliances are ANSI/UL 464, ANSI/UL 1971 and/or ANSI/UL 1638 listed for use with fire protective systems and are warranted for five years from date of purchase.
Main Features
- Nominal Voltage 24 VDC
- Fixed177 candela strobe
- Super-Slide® Bracket - ease of supervision testing
- Checkmate® - Instant voltage verification
- Unit Dimensions: 5" (12.7 cm) high x 4.5" (11.43 cm) wide x 2.5" (6.35 cm) deep.
- Synchronize strobe and/or horn with AVSM Control Module
- Pre wire entire system, install mounting bracket, then install signals
- Documented lower installation and operating costs
- Input terminals 12 to 18 AWG
- Switch selection for high or low dBA
